40 Watt Dual-Tap Landscape Transformer with Timer and Photocell Slide Sensor

Dual-Tap Landscape Transformer with Timer and Photocell Slide Sensor - 40 Watts

Enhance your outdoor lighting setup with the high-performance Dual-Tap 12/15VAC landscape transformer from relightdepot.com. This powerful 40-watt transformer is equipped with a convenient timer and photocell slide sensor, making it the ideal choice for wet locations. Built to last, it's IP67 rated and comes with a 5-year warranty for added peace of mind.

Transformer Specifications

• Output voltage: 12/15VAC
• Non-dimmable when using timer/photocell
• Temperature class B (130°C)
• Thermal manually reset secondary breaker 6A
• Built-in options for timer and photocell

Durable Housing

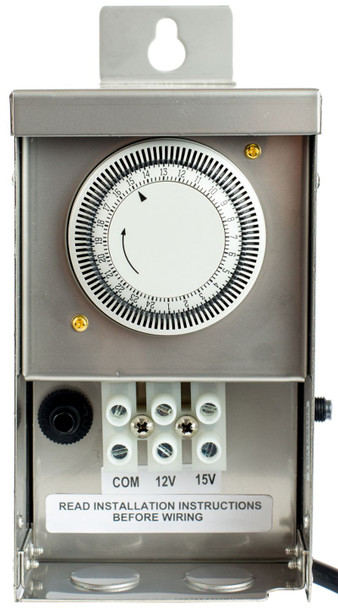

The 40W transformer is securely encapsulated within a durable stainless steel enclosure. The enclosure is NEMA 3R rated, ensuring it stands up to challenging conditions. Designed with usability in mind, it features a wiring compartment with two knockouts for 3/8 inch screw cable connectors. The design ensures that the enclosure temperature won't exceed 65°C at 45°C ambient and fully loaded conditions. Dimensions are H: 8.5 inches, W: 3.75 inches, D: 4.4 inches, and it weighs in at just 0.5 pounds.

Electrical Parameters

• Input Voltage: 120V 60Hz
• Max input current at full load: 0.4A
• Output voltage without load: 12/15VAC
• Output voltage fully loaded: 11.5/14.5VAC
• Max total wattage: 40W
• Max output current: 3.3/2.7A
• Efficiency: 90%

Optimize your landscape lighting with this reliable and energy-efficient transformer, exclusively available at relightdepot.com.
