6-inch LED square slim rececessed, 14 watts, 900 or 950 lumens, available in 3000K or 4100K color temperature (CCT), up to 50,000 hours rated life, white or black finish, 5 years on commercial applicants.
DESCRIPTION

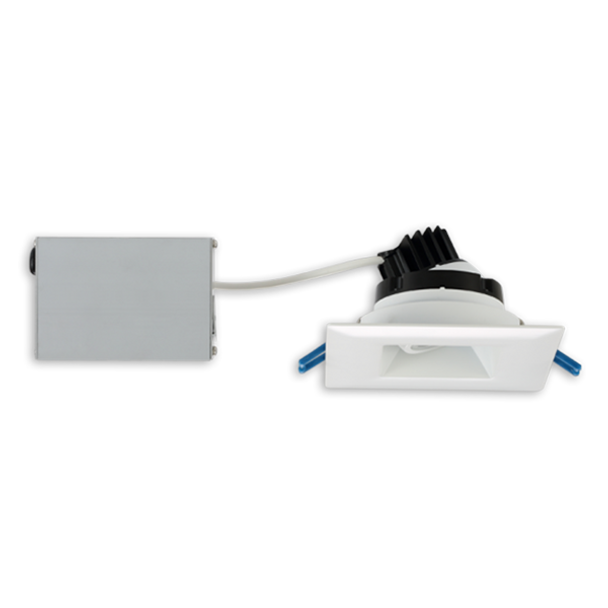

6" Square Slim Recessed LED With Integral Driver In Connection Box
FEATURES & BENEFITS
- 1 1/2" Deep - Install Where Ceiling Space Is Limited
- Driver Inside Connection Box - No Junction Box Needed
- Fast & Easy To Install - Save On Labor
- Type IC Rated - No Housing Required
MOUNTING
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips. Ceiling Clearance Required For Driver: 1 1/2"
SPECIFICATIONS
- Applications: Recessed Ceiling
- Energy Used: 14W
- Color Temperature: 3000K/4100K
- Light Output (lm): 900 | 950
- Halogen Equivalent: 75W
- Beam Angle: 110°
- CRI: 80
- Default Driver Input: 120V AC Triac Dimmable
- Option Driver Input: 120V-347V AC 0-10V Dimmable
- Power Factor: 0.95
- Approved Location: Insulated Ceiling & Wet Locations
- IP Rating: IP 54
- Air Tight: Yes
- Ambient Temperature: -40°F(-40°C)to+104°F(+40°C)
- Projeceted Life: 70% Light Output at 50,000 Hours
- Certification: cULus
- Warranty: 5 Year on Commercial Applications
RESOURCES AND DOWNLOADS
| SKU | LLL-LY6S |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 90+ |
| Lumen Output | 900lm/950lm |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4100K |
| Total Input Watts | 14W |
