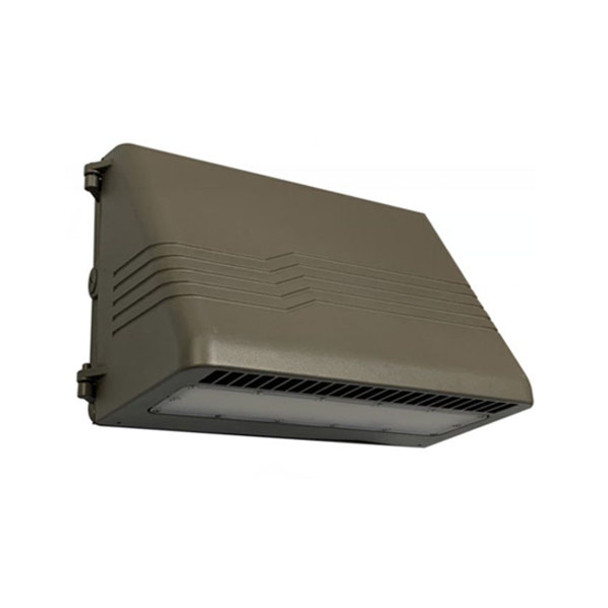

Large cut-off wall pack, 60 watts, 7,800 lumens, available in 3000K, 4000K or 5000K color temperature (CCT), glare free optic, heavy duty aluminum housing, suitable for wet and damp locations, 5 years warranty for complete fixture.
GENERAL DESCRIPTION
The WPCL is a large size Cut-Off style wall pack designed to be Dark-Sky compliant. A wide range of control options are available including Occ sensor, Photocell and Emergency backup.
CONSTRUCTION
- Heavy duty aluminum housing
- Glare-free optic
- IP65 for wet and damp locations
MOUNTING
- Regular in-wall J-box
ELECTRICAL
- High Power Factor, low THD UL listed driver with 5KV surge protection.
- Universal line voltage input 120-277V, 347/480V optional
- 0-10V dimmable optional
OPTICAL
- Glare-free Polycarbonate lens.
CONTROLS
- Button style eye photocell.
- Bi-Level Occupancy sensor.
- Build-in emergency backup.
WARRANTY
- 5 years warranty for complete fixture
LISTINGS
- ETL
- DLC
- RoHs
- IP65
RESOURCES AND DOWNLOADS
| SKU | EX-WPCL-60W |
|---|---|
| Weight | 12.00 LBS |
| Light Source | LED |
| Fixture Size | 14.5" |
| Color Rendering Index (CRI) | 70+ |
| Driver Type | 120/277VAC | 347/480VAC |
| Lumen Output | 7,800lm |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 60W |
