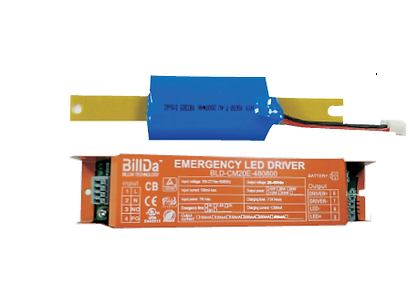

Compact and efficient, the 8W LED Emergency Driver ensures reliable emergency lighting for critical situations. With a universal input voltage range of 120-277V and a robust lithium-ion battery, this driver provides a dependable 1.5-hour runtime during power outages, making it an essential component for safety and compliance in various settings.
Key Features and Benefits
- Universal Input Voltage: 120-277V
- Output Power: 8W
- Emergency Runtime: 1.5 hours
- Battery Type: Lithium-ion (7.4V/2500mAh)
- Full Warranty: 3 years
- RoHS Compliant
- Safety Standards: Meets most lighting safety standards, including CSA C22.2 NO.141 and UL 924

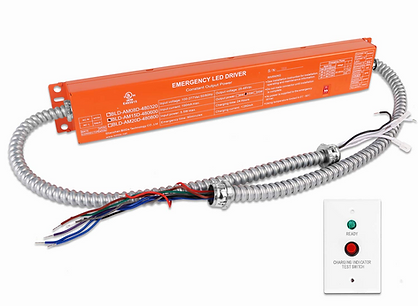

- Includes Illuminated Test Switch and Indicator Light
Specifications
- Input Voltage: 120-277V AC, 50/60Hz
- Input Current: 100mA max
- Input Power Rating: 7.0W max
- Output Current and Voltage: 160-320mA, 25-48V DC
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions: 7.4'' x 1.5'' x 1.1'' (188mm x 38mm x 29mm)
- Weight: 0.63 lbs (0.29 kg)
Common Uses
Ideal for use in commercial buildings, offices, schools, hospitals, and other settings requiring reliable emergency lighting. This driver ensures safety and compliance by providing consistent illumination during power outages.
RESOURCES AND DOWNLOADS
| SKU | HY-BLD-CM20E-480800-8W |
|---|---|
| Weight | 16.00 LBS |
