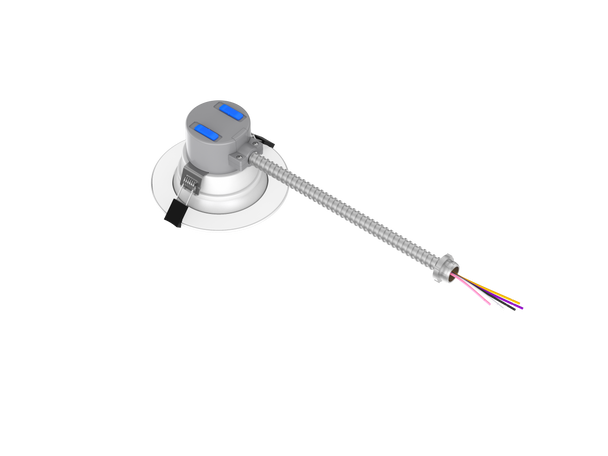

4" commercial downlight with selectable color temperature (27/30/35/40/5000K) and adjustable lumen outputs (1440/1260/1080/900/720 lm).
Key Features and Benefits
- Provides comfortable diffused light
- PowerSet feature allows for 5 “set and forget” lumen stops
- FieldCCeT feature allows for 5 “set and forget” CCT options
- Suitable for new construction or remodel applications
- Easy Installation due to spring-loaded heavy duty brackets
- Deep recessed light source for lower glare
Specifications
- High efficacy, up to 90 lm/W
- CRI: >80
- Input Voltage: 120-277V
- Dimming: 0-10V
- Power Factor: >0.9
- THD: <20%
- Estimated L70: 100,000 Hours
- ETL, ENERGY STAR, IC Rated, Wet Location, RoHS Compliant, FCC Compliant, ICES-005 Compliant, IP54 Rated
Common Uses
Reception/Lobby, Retail/Storefront, Dr. Offices/Waiting/Patient Rooms, Admin/Class/Conference/Meeting Rooms/Library, Multi-Residential (Dorms/Apartments), Gyms & Athletic Facilities, Industrial/Commercial Offices
RESOURCES AND DOWNLOADS
| SKU | E-CD4-PS16-8FCCT-UDIM-WH |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 1440/1260/1080/900/720 |
| Total Input Watts | 16/14/12/10/8 |
| Voltage | 120-277V |
| Color Temperature (CCT) | 27/30/35/40/5000K |
| Color Rendering Index (CRI) | 80+ |
