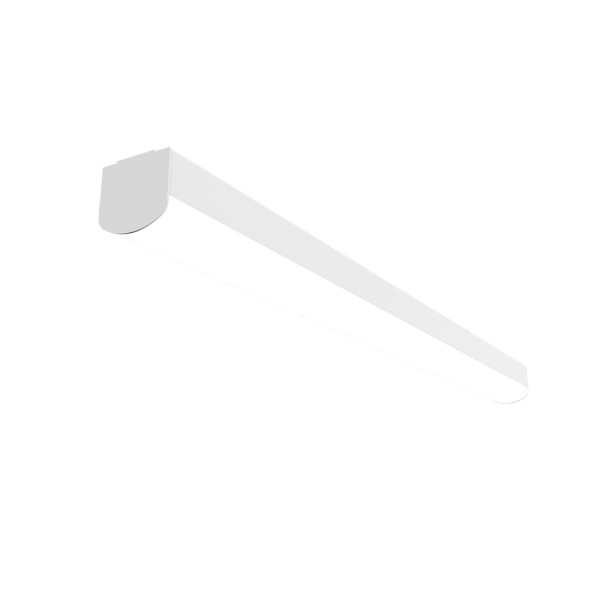

Introducing the Discovery Series 8' Linear Strip, a highly configurable BAA Spec Grade Strip Luminaire designed for optimal performance and versatility.
Key Features and Benefits
- Highly Configurable BAA Spec Grade Strip Luminaire
- Sleek injection-molded endcap design with Decorative No Knockout end cap option
- No visible fasteners providing a smooth uninterrupted design
- Precision Designed Low UGR Curved & Flat Frosted Acrylic Lens options - IK06 Impact Rate
- High Performance Narrow or Wide Distribution Optics
- Available in White (Standard), Black, Silver, or Custom Finishes
- Sleek Integrated Wireless Grouping Control Options
- Multiple mounting options including Surface, Cable, Suspension, Pendant, & Wall Mounting
- Asymmetrical & Symmetrical White Reflector Options
- Available in 2ft, 4ft & 8ft lengths
- 18 Lumen Packages ranging from 2,000 to 20,000 lumens
- Standard Efficacy (SE) and High Efficacy (HE) Lumen Packages
- 3000K, 3500K, 4000K, and 5000K CCT options available
- 80 or 90 CRI
- 120-277V & 347V 0-10V, Bi-Level & Line Voltage Driver Options
- 0-10V Dimmable Driver (100% -10%)
- L90 > 54,000 hours
- Operating temperature range: -4°F to 122°F
- 5 Year Warranty (standard); 10 Year Warranty Optional
- ETL Listed for Dry and Damp Locations
Specifications
- Lumens: 16000
- Wattage: 40W
- Voltage: 120-277V
- Color Temperature: 3500K
- CRI: 80
Common Uses
Ideal for offices, educational facilities, storage facilities, garages, retail spaces, warehouses, distribution centers, grocery stores, healthcare settings, and hallways.
RESOURCES AND DOWNLOADS
| SKU | ILP-DSC8-16LHE-U-35-FCLGR-NEKO |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 16000 |
| Total Input Watts | 40W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 3500K |
| Color Rendering Index (CRI) | 80 |
