When normal utility power fails, the internal solid-state transfer switch automatically connects the internal battery to the LED lamps, lighting a path of egress for no less than 90 minutes. When utility power is restored the battery is recharged by the on-board solid-state recharger. Full recharge is accomplished within 24 hours.

DESIGN FEATURES

CONSTRUCTION

• High impact-flame retardant thermoplastic faceplate
• Double mirrored finish faceplate
• Compact, low profile design
• Completely Self-contained

ELECTRICAL

• 120/277V
• Operating temperature: 0°C (32°F) to 50°C (122°F)
• Contains 4.8V Ni-cd rechargeable battery
• Automatic, low voltage disconnect protects battery from deep discharge
• Energy consumption of less than 5 watts
• Estimated 25 year LED lamp life
• 90 minutes of illumination in case of power failure

INSTALLATION

• Wall or ceiling mountable
• Includes universal mounting canopy that pivots for slope ceiling use
• Removable directional indicators included
• Easy, one-person installation

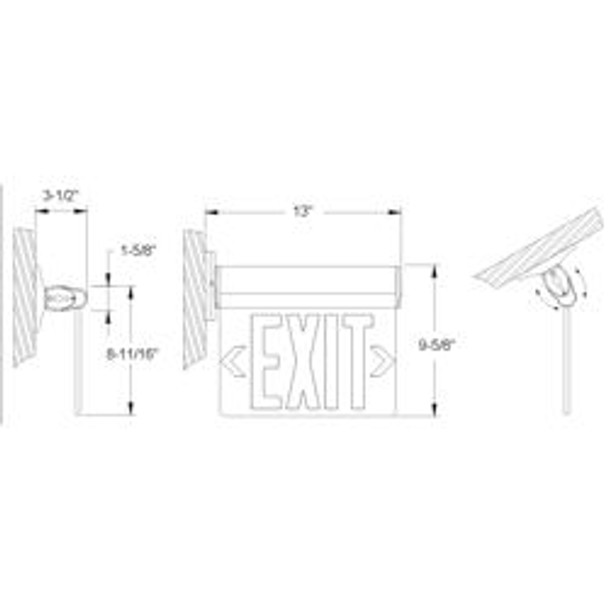

DIMENSIONS (W x D x H)
12-1/4” x 1-5/8” x 8-2/4” or 9-3/4”

FINISH

• Red with white housing, white end caps
• Red with brushed aluminum housing, black end caps
• Green with white housing, white end caps
• Green with brushed aluminum housing, black end caps

CERTIFICATIONS

• UL listed for damp location
• 5 year limited warranty
