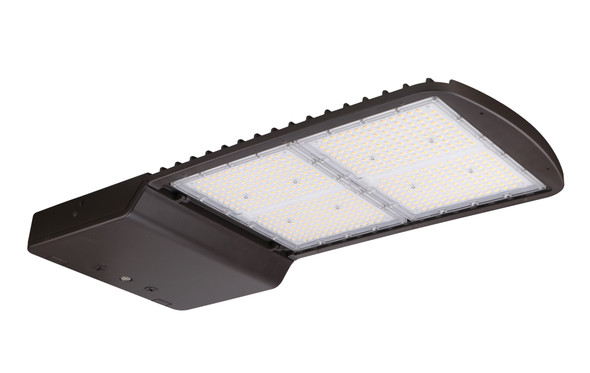

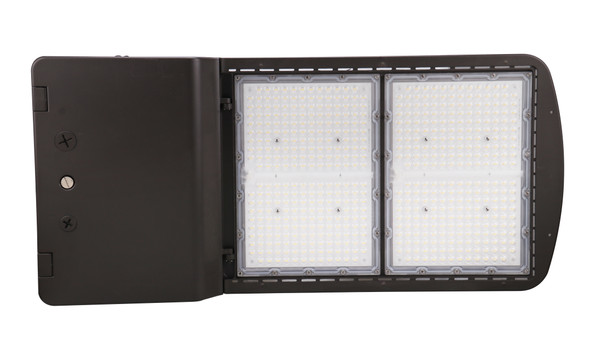

AAL1 Area Light with selectable wattage 100/80/60W, 4000K color temperature, and 14,000/11,200/8400 lumen outputs.
Key Features and Benefits
- Architectural thin profile for area light applications
- Controls Ready for quick and easy addition of controls
- NEMA 7-pin photocell receptacle available
- Multiple lens optics: T2, T3, T4, T5
- Versatile mounting options (mounts sold separately)
- Hinged toolless access junction box for easy installation and maintenance
- Pre-installed 3.3ft power cord
- PowerSet feature for multiple lumen outputs
- FieldCCeT feature for multiple color temperature settings
Specifications
- High Efficacy: up to 140 lm/W
- Available Wattages: 100/80/60W
- Color Temperatures: 4000K
- CRI: >80
- Distribution Types: T2, T3, T4, T5
- Input Voltage: 120-277V
- 0-10V dimming, dim-to-off
- Surge Protection: 10kV included, 20kV optional
- Ambient Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- UL listed, RoHS Compliant, FCC Compliant, ICES-005 Compliant, IP65 Rated, IK08
- Estimated L70: 100,000 Hours
Common Uses
Parking Areas, Automotive Dealerships, Roadways, Campuses, Streetscapes, Airports, Area security lighting, Building facades, Signs, Entryways
RESOURCES AND DOWNLOADS
| SKU | E-AAL1-PS450-U |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 14,000/11,200/8400 |
| Total Input Watts | 100/80/60W |
| Voltage | 120-277V |
| Color Temperature (CCT) | 4000K |
| Color Rendering Index (CRI) | >80 |
