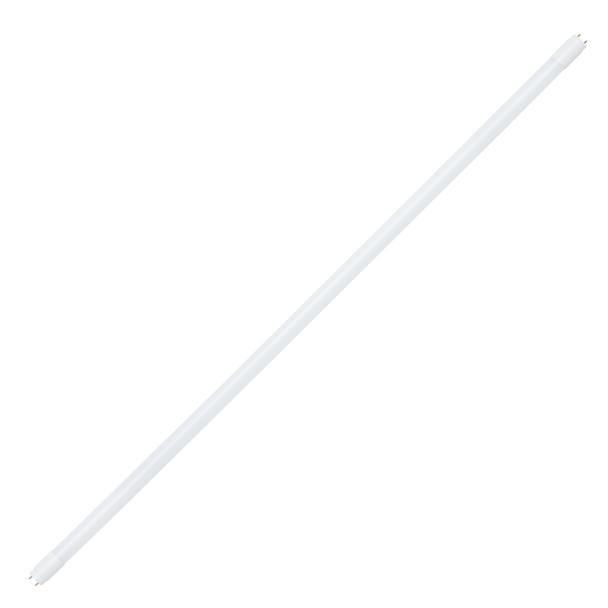

The T8 Type C LED Lamp from EiKO is a versatile and efficient lighting solution available in 3ft length. It is designed to offer superior efficacy and flexible current outputs for various lighting requirements.
Key Features and Benefits
- Superior efficacy compared to other types of LED tubes
- Adjustable current outputs for compatibility with various configurations
- Instantaneous full light output upon power-up
- Glass material for better light transmission
- Dimmable with 0-10V dimmer
Specifications
- High efficacy, up to 162 lm/W
- Available in single CCT models: 3500K, 4000K, or 5000K
- Adjustable current output drivers
- CRI: 83
- Rated Life: >50,000 hours
- Drivers: 120-277VAC (input), 48VDC (output)
- Lamps: 48VDC
- Driver Surge protection: 2.5kV
- Power Factor: >0.9
- THD: <20%
- Operating temperature: -4°F to 113°F (-20°C to 45°C)
- Not recommended for air-tight fixtures
- Frosted glass lens for optimal heat dissipation
- G13 bi-pin
- 5-Year limited warranty available online
Common Uses
Office, Hospital, Classroom, Hotel, Retail, Warehouse, Stairwell, Hallway, Production, Gym, Campus
RESOURCES AND DOWNLOADS
SKU | E-L11.5WT8/36/CDG |
---|---|
Weight | 16.00 LBS |
Lumen Output | 1500 |
Total Input Watts | 11.5W |
Voltage | 120-277VAC |
Color Temperature (CCT) | 4000K |
Color Rendering Index (CRI) | 83 |
