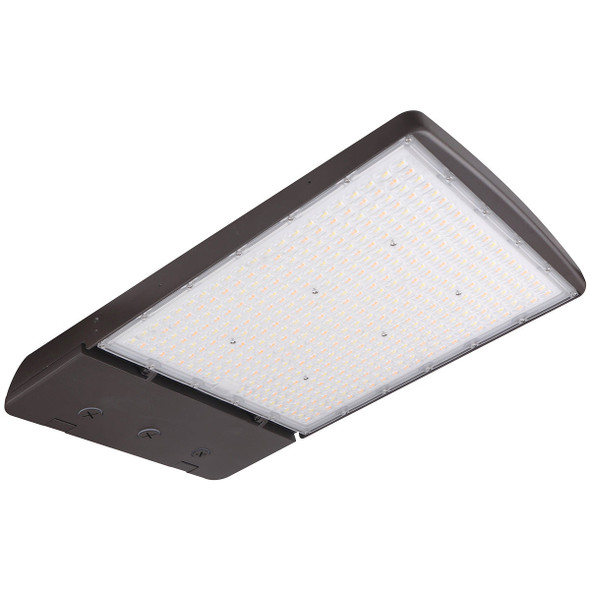

EiKO's AAL1-PS300-FCCT series area lights offer versatile lighting solutions with field-selectable color temperatures and power settings, making them ideal for diverse outdoor applications.
Key Features and Benefits
- Architectural thin profile for area light applications
- Controls ready with screw-in receptacle for standalone sensors or networked lighting controls
- NEMA 7-pin photocell receptacle available by factory modification
- Multiple lens optics (T2, T3, T4, T5) and mounting options
- Hinged toolless access junction box
- Pre-installed 3.3ft (1m) power cord
- PowerSet feature for multiple lumen stops
- FieldCCeT feature for multiple color temperature settings
Specifications
- High efficacy up to 140 lm/W
- Available in PowerSet models: 300/240/200W
- Field-selectable color temperatures: 3000K, 4000K, 5000K
- CRI: >80
- Estimated L70 lifespan: 100,000 hours
- Input voltage: 120-277V or 277-480V
- 0-10V dimming, dim-to-off
- Surge protection: 10kV standard, 20kV optional
- Operating temperature: -40°F to 122°F (-40°C to 50°C)
- Bronze powder-coated die-cast aluminum housing
- Impact and UV resistant polycarbonate lens
- Certifications: UL, RoHS, FCC, ICES-005, IP65, IK08, 3G per ANSI C136.31, DLC Premium
Common Uses
Ideal for parking areas, automotive dealerships, roadways, campuses, streetscapes, airports, area security lighting, building facades, signs, and entryways.
RESOURCES AND DOWNLOADS
| SKU | E-AAL1-PS300-FCCT |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 42,000/33,600/28,000 lm |
| Total Input Watts | 300/240/200W |
| Voltage | 120-277V or 277-480V |
| Color Temperature (CCT) | 3000K, 4000K, 5000K |
| Color Rendering Index (CRI) | >80 |
