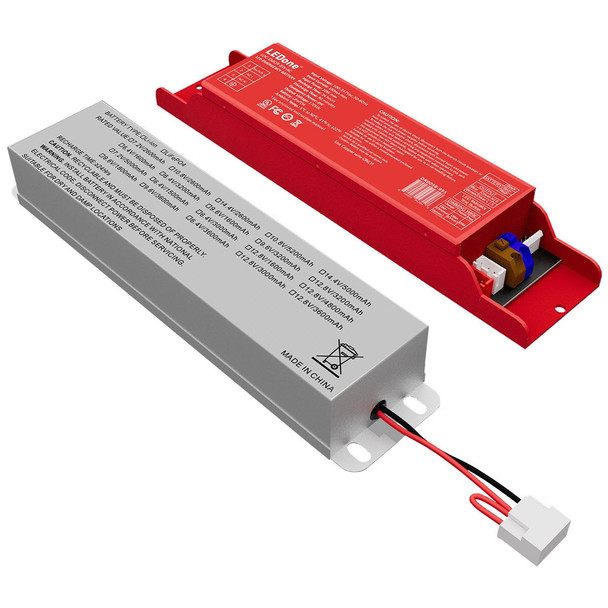

8W Emergency Driver with selectable input voltage from 100-347Vac, featuring self-testing capabilities and low energy consumption.

Key Features and Benefits

• Listed to UL924 and tested to CSA C22.2 NO. 141 for field or factory installation
• High input voltage with low energy consumption, CEC compliance
• Constant output power with self-testing capabilities
• Includes Li-ion or LiFePO4 battery with over temperature, over charge, and over discharge protection
• Surge protection up to Line-neutral 3KV
• Ambient temperature range: 5°C-50°C (41°F-122°F)
• 5-year limited warranty

Specifications

• Input Voltage: 100-347 Vac, 50/60Hz
• Input Current: 150mA max.
• Input Power Rating: 10W max.
• Output Voltage: 170 Vdc
• Emergency Power: 8W max.
• Recharge Time: 24 hrs
• Discharge Time: 1.5h

Common Uses

Ideal for emergency lighting applications in commercial and industrial settings, ensuring safety and compliance with life safety codes.
