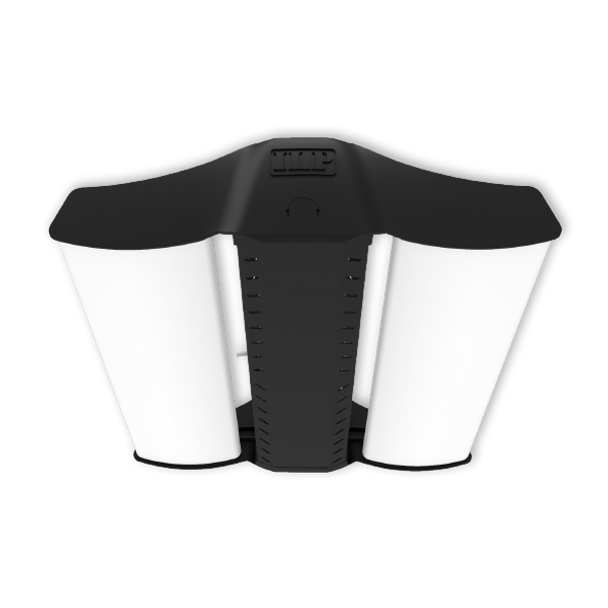

The Endeavor 4ft High Bay offers 100,000 lumens, selectable 5000K color temperature, and narrow distribution with a frosted acrylic lens.
Key Features and Benefits
- Sleek Curved Polycarbonate Injection Molded End Caps
- Aluminum Body with steel channel for added rigidity
- Toolless Hinged Driver Access
- Narrow Distributions
- V-Clips for dual point chain or cable hanging (standard)
- 131°F Standard Ambient Temperature Range
- 5000K CCT
- 17 Size/Lumen packages
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 0-10V Dimmable Driver (100%– 10%)
- 5 Year Warranty (standard)
- ETL Listed for Damp Location
- DesignLights Consortium® Premium Qualified Luminaire
Specifications
- Part Number: EDV4-100L-U-50-ND-FRL
- Lumens: 100,000 lm
- Color Temperature: 5000K
- Lens: Frosted Acrylic Lens
- Distribution: Narrow
- Fixture Efficacy: 147 lm/W
- Mounting: Pendant
- Spacing Criteria: 0° = 1.24, 90° = 1.24
- Voltage: 120-277V
- Standard Ambient Temperature Range: -40°F to 131°F
- Certifications: ETL Listed, DesignLights Consortium® Premium Qualified
- Warranty: 5 Year Standard
Common Uses
Gymnasium, Manufacturing, Warehouse, Distribution Centers, Hangar, Retail, Government Facilities, Auto Service Bays/Lanes
RESOURCES AND DOWNLOADS
| SKU | ILP-EDV4-100L-U-50-ND-FRL |
|---|---|
| Weight | 35.00 LBS |
