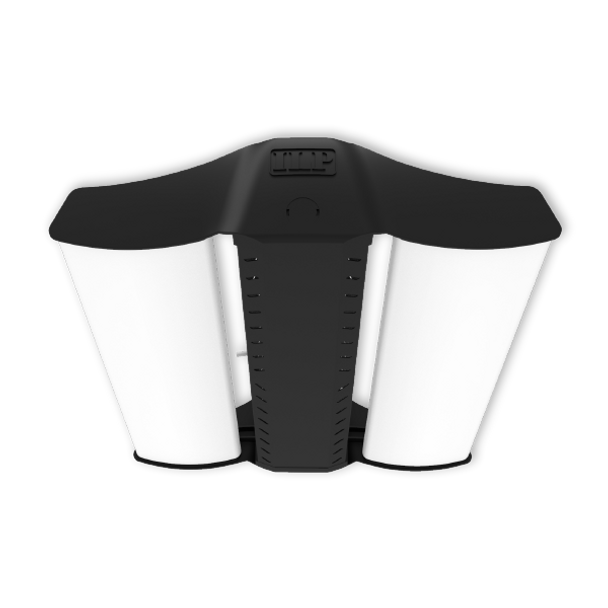

This 4ft Endeavor High Bay offers 24,000 lumens with a selectable color temperature of 4000K. It features a narrow distribution and a frosted acrylic lens for optimal lighting in industrial settings.
Key Features and Benefits
- Sleek Curved Polycarbonate Injection Molded End Caps
- Aluminum Body with steel channel for added rigidity
- Toolless Hinged Driver Access
- Narrow Distributions
- 131°F Standard Ambient Temperature Range
- 4000K selectable CCT
- Uplight Options to optimize full room illumination
- 17 Size/Lumen packages
- >80 Color Rendering Index (CRI)
- Calculated L70 >100,000 hrs
- 0-10V Dimmable Driver (100%– 10%)
- 5 Year Warranty (standard)
- ETL Listed for Damp Location
- DesignLights Consortium® Premium Qualified Luminaire
Specifications
- Part Number: EDV4-24L-U-40-ND-FRL
- Lumens: 24,000 lm
- Color Temperature: 4000K
- Distribution: Narrow
- Lens: Frosted Acrylic
- Ambient Temperature Range: -40°F up to 131°F (-40°C to 55°C)
- Power: 163 W
- Efficacy: 147 lm/W
- Mounting: Pendant
- ETL Listed for Damp Location
- Calculated L70 >100,000 hrs
Common Uses
Ideal for use in gymnasiums, manufacturing facilities, warehouses, distribution centers, hangars, retail spaces, government facilities, and auto service bays/lanes.
RESOURCES AND DOWNLOADS
| SKU | ILP-EDV4-24L-U-40-ND-FRL |
|---|---|
| Weight | 35.00 LBS |
