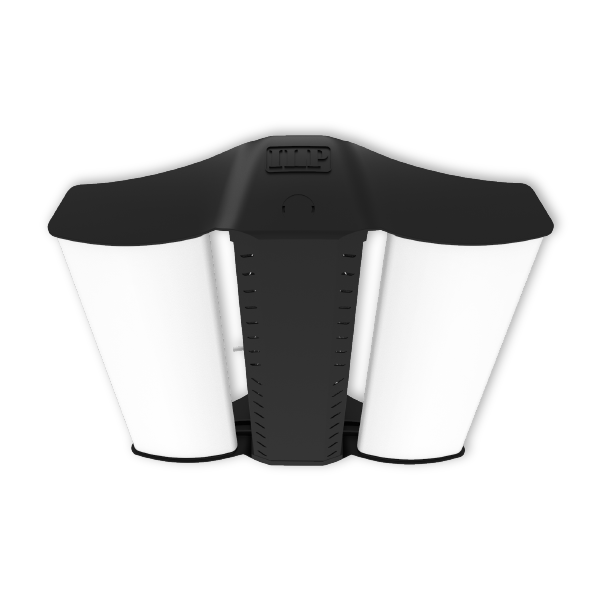

Endeavour 4' Linear High Bay, 75,000 lm, 5000K, Narrow Distribution, Frosted Acrylic Lens

The Endeavour 4' Linear High Bay offers 75,000 lumens with selectable color temperatures ranging from 3000K to 5000K, and adjustable lumen outputs. Ideal for industrial settings.

Key Features and Benefits

• Sleek Curved Polycarbonate Injection Molded End Caps
• White and black finish options
• Aluminum Body with steel channel for added rigidity
• Toolless Hinged Driver Access
• Wide & Narrow Distributions
• Impact Resistant and IP5X Rated Lens Options: Frosted Acrylic (FRL), Frosted Polycarbonate (PFL) IK10 Impact Rated
• V-Clips for dual point chain or cable hanging (standard)
• 131°F Standard Ambient Temperature Range, 149°F Max High Ambient Temperature Option
• 3000K –5000K CCT
• Uplight Options to optimize full room illumination
• 17 Size/Lumen packages: 2': 8L - 36L, 4': 12L - 100L
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000 hrs
• 0-10V Dimmable Driver (100%– 10%)
• 5 Year Warranty (standard); 10 Year Warranty Optional
• ETL Listed for Damp Location
• DesignLights Consortium® Premium Qualified Luminaire

Specifications

• Lumens: 75,000 lm
• Color Temperature: 5000K
• Lens: Frosted Acrylic (FRL)
• Distribution: Narrow Distribution
• Efficacy: 147 lm/W
• Wattage: 510W
• Mounting: Pendant
• Spacing Criteria: 0° = 1.24, 90° = 1.24
• Ambient Temperature Range: Standard up to 131°F, High up to 149°F
• Certifications: ETL, DLC Premium

Common Uses

Gymnasium, Manufacturing, Warehouse, Distribution Centers, Hangar, Retail, Government Facilities, Auto Service Bays/Lanes
