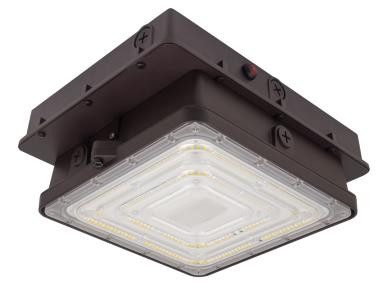

Quick to install and pay for itself, the Enhanced Canopy/Parking Garage fixture is an economical retrofit solution for 70-250W HID garage and canopy luminaires. Offered in five wattages, CCT and wattage selectable, with a single lens that covers up to 4 DLC distribution categories, the CPL can address a variety of canopy/parking garage lighting needs. The series comes standard with an internal c-Max control receptacle which allows for a variety of c-Max controls to be field installed (sold separately). The luminaire also features a single screw design that allows access to the fixture interior within seconds for quick and easy surface conduit connections or c-Max controls installation. In addition, factory installed battery backup, 480V and White finish options are available. For Canopy/Parking Garage applications, this family makes it easy!

Key Features and Benefits

• c-Max compatible allowing a variety of field installed c-Max controls
• Third party network controls available (factory installed)
• Quick and easy access to interior with single screw and hinge design for conduit connection and controls installation
• CCT selectable between 3000/4000/5000K
• Single lens covers up to 4 different DLC categories
• Wattage selectable on 60W version
• Shorter height for more vehicle clearance (2.67"/67.6mm)
• 18" leads standard for easier pendant mounting
• Universal 120-277V standard
• TAA compliance available - contact Maxlite for details

Specifications

• Power Consumption: 50.2W
• Lumens: 6,770-7,130
• Efficacy: 135-143 lm/W
• CRI: 84+
• Color Temperature: 3000/4000/5000K Selectable
• Voltage: 120-277V
• Dimming: 0-10V, compatible with c-Max Controls standard
• Battery Backup: -20°C Battery Backup factory installed (back box), 8W, 800-950 lumens
• Lumen Maintenance (L70): 100,000+ Hours
• Housing: Die Cast Aluminum with corrosion resistant polyester powder coat
• Lens: Polycarbonate
• Mounting: Surface: Hinged metal mounting plate holds fixture to connect wires, hinged housing design with single screw for quick access to interior for surface conduit connection; Pendant: 18" leads standard to make wiring easier
• Operating Temperature: -40°C/-40°F - 40°C/104°F
• Weight: 6 lbs (2.75 kg)
• Listings: UL, FCC, TAA Available
• DLC: Premium - Low-Bay Luminaires for Commercial and Industrial Buildings, Fuel Pump Canopy Luminaires, Parking Garage Luminaires
• Environment: IP65, RoHS
• Warranty: 10 Years (see Maxlite warranty page for details)

Common Uses

Ideal for parking garages, canopies, stairwells, and passageways, providing energy-efficient and reliable lighting solutions.
