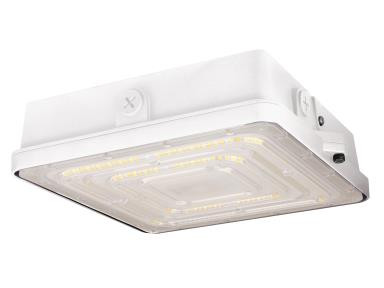

The Enhanced Canopy/Parking Garage fixture is an economical retrofit solution for 70-250W HID garage and canopy luminaires, offering selectable color temperature and wattage options.
Key Features and Benefits
- c-Max compatible for a variety of field installed controls
- Quick access to interior with single screw and hinge design
- CCT selectable between 3000/4000/5000K
- Wattage selectable on 60W version
- Shorter height for more vehicle clearance (2.67”/67.6mm)
- 18” leads standard for easier pendant mounting
- High Voltage 277-480V
- TAA compliance available
Specifications
- Power Consumption: 60W
- Voltage: 277-480V
- Lumens: 7,910-8,370
- Efficacy: 130-140 lm/W
- CRI: 84+
- Color Temperature: 3000/4000/5000K Selectable
- Dimming: 0-10V, compatible with c-Max Controls standard
- Lumen Maintenance (L70): 100,000+ Hours
- Housing: Die Cast Aluminum with corrosion resistant polyester powder coat
- Lens: Polycarbonate
- Mounting: Surface or Pendant
- Operating Temperature: -40°C to 40°C
- Weight: 6 lbs (2.75 kg)
- Listings: UL, FCC, TAA Available
- DLC: Premium - Low-Bay Luminaires for Commercial and Industrial Buildings, Fuel Pump Canopy Luminaires, Parking Garage Luminaires
- Environment: IP65, RoHS
- Warranty: 10 Years
Common Uses
Ideal for parking garages, canopy lighting, and various commercial and industrial applications.
RESOURCES AND DOWNLOADS
| SKU | MX-CPL60HCSWCR |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 7,910-8,370 |
| Total Input Watts | 60W |
| Voltage | 277-480V |
| Color Temperature (CCT) | 3000/4000/5000K Selectable |
| Color Rendering Index (CRI) | 84+ |
