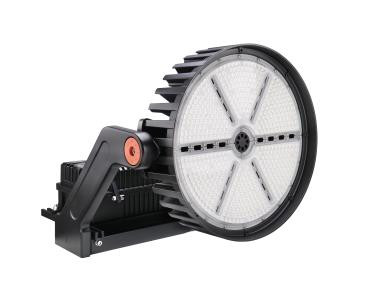

The FieldMax Sports/HO Flood is the perfect solution for either sports fields or large areas. It has 3 wattage packages and up to 5 optical choices which can be tailored to your specific application. It works great for football, soccer, baseball and multi-purpose recreational fields. It works equally well on large area situations such as transportation terminals or agricultural landscapes. In addition, it offers high voltage (480V) and a variety of integral controls options including a dynamic theatrical effect for sports venues.
Key Features and Benefits
- 515W with up to 77K lumens
- Medium beam spread
- Universal voltage (120-277V)
- 6kV + 10kA minimum surge protection
- Yoke mounting suitable for Cross-Arms
- 3pin Twist Lock Receptacle
- Field installable visor and laser pointer for aiming accessories available
Specifications
- Power Consumption: 520W
- Lumens: 72,400 - 77,350
- Efficacy: 130+ lm/W
- CRI: 70+
- Color Temperature: 4000K
- Voltage: 120-277V
- Surge Protection: 6kV integral to driver + 10kA (120-277V)
- Lumen Maintenance (L70): 100,000+ Hours
- Construction: Die cast aluminum housing with corrosion-resistant powder coat paint finish
- Lens: Polycarbonate
- Operating Temperature: -40°C/-40°F to 40°C/104°F
- Weight: Y mount 14.5K/32LBS
- Listings: cULus, FCC, TAA Available
- DLC: Outdoor Luminaires, Very High Output, Architectural Flood and Spot Luminaires - Premium
- Environment: IP65, ANSI 3G Vibration (both mountings)
- Warranty: 10 Years
Common Uses
Sports and recreation fields, high mast lighting, airports, transportation terminals, and agricultural landscapes.
RESOURCES AND DOWNLOADS
SKU | MX-SHF515U-40MLYRPC |
---|---|
Weight | 16.00 LBS |
Lumen Output | 72,400 - 77,350 |
Total Input Watts | 515 |
Voltage | 120-277V |
Color Temperature (CCT) | 4000K |
Color Rendering Index (CRI) | 70+ |
