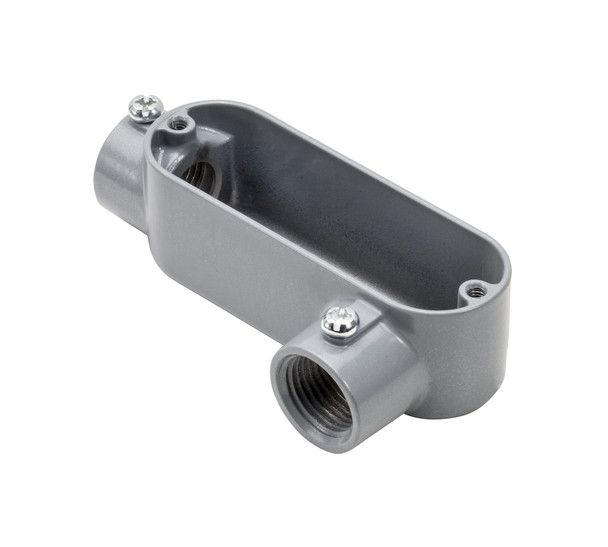

The Garvin Industries EMT and Rigid Combination Conduit Body, LL1SS, is a robust 1/2" LL type fitting designed to provide easy access to conductors for pulling, splicing, and maintenance. This conduit body is a key component in Southwire's lineup, known for its durability and versatility in demanding environments.

Key Features and Benefits

• Combination LL type for flexible installation
• NPT tapered hubs ensure secure connections
• Suitable for use in concrete and wet locations (NEMA FB 1 rated)
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• UL 514A listed and meets Fed. Spec. W-C-586D
• Steel screws included for reliable assembly

Specifications

• Hub Size: 1/2"
• Maximum Wire Size: 6 AWG
• Material: Copper-free aluminum
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 4.56" (A) x 1.31" (B) x 2.06" (C)

Common Uses

Ideal for commercial, industrial, and residential conduit runs where access to wiring is needed for maintenance, splicing, or pulling, especially in wet or concrete environments.
