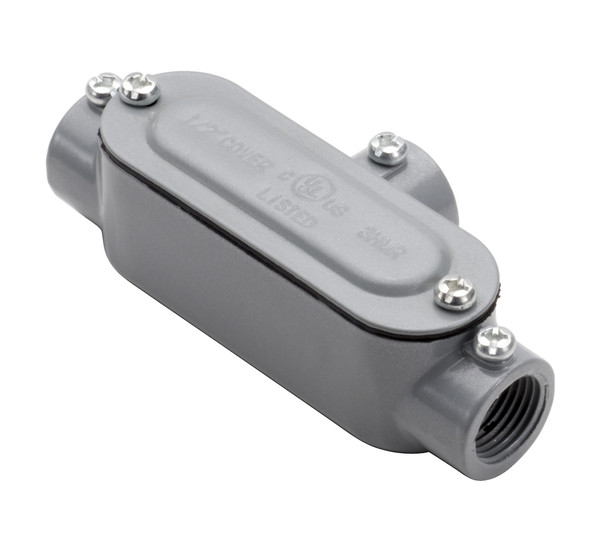

The Garvin Industries EMT and Rigid Combination Conduit Body, T2SSCG, is a versatile T type fitting designed for 3/4" conduit runs. Engineered for durability, it features a copper-free aluminum die-cast body, a stamped steel cover, and a neoprene rubber gasket, making it ideal for wet locations and concrete installations.

Key Features and Benefits

• Combination T type body with included cover and gasket for easy access
• NPT tapered hubs ensure secure, leak-resistant connections
• Suitable for use in concrete and wet locations for maximum versatility
• Powder coat finish for enhanced durability and corrosion resistance
• UL listed and NEMA FB 1 rated for safety and compliance
• Allows for convenient pulling, splicing, and maintenance of conductors

Specifications

• Size: 3/4"
• Max wire size: 2 x 6 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 6" (A) x 1.62" (B) x 2.22" (C)

Common Uses

Perfect for commercial, industrial, and residential conduit installations where access to conductors for pulling, splicing, or maintenance is needed, especially in wet or concrete environments.
