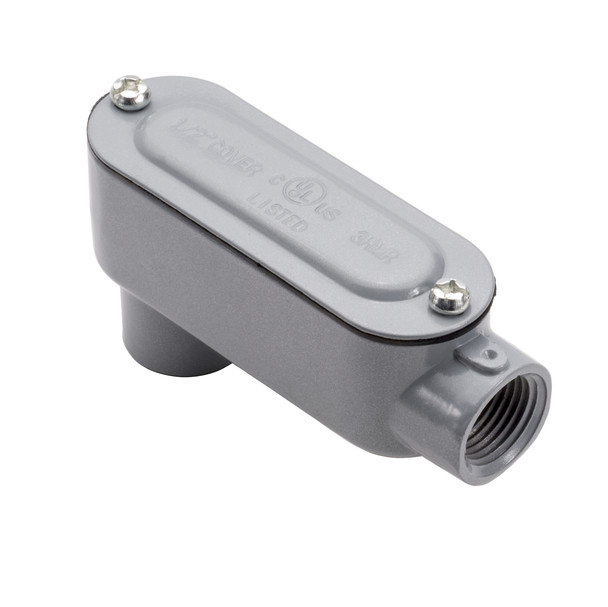

The Garvin Industries LB2CG is a 3/4" threaded LB conduit body, complete with a cover and gasket, designed for durability and versatility in challenging environments. This essential fitting is crafted from copper-free aluminum and features NPT tapered hubs, making it a reliable choice for both wet locations and concrete installations.

Key Features and Benefits

• Includes cover and neoprene gasket for a secure, weather-resistant seal
• Threaded NPT hubs ensure easy and secure conduit connections
• Powder-coated finish for enhanced durability and corrosion resistance
• UL listed and meets NEMA FB 1 standards for safety and performance
• Allows convenient access to conductors for pulling, splicing, and maintenance
• Constructed from copper-free aluminum for long-lasting reliability

Specifications

• Trade Size: 3/4"
• Material: Copper-free aluminum die cast body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Dimensions: 5.09" (A) x 2.43" (B) x 1.54" (C)
• Wire Capacity: Up to 2 wires, 6 AWG max
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1

Common Uses

Ideal for commercial, industrial, and residential conduit installations, especially where access to conductors is needed for pulling, splicing, or maintenance in wet or concrete environments.
