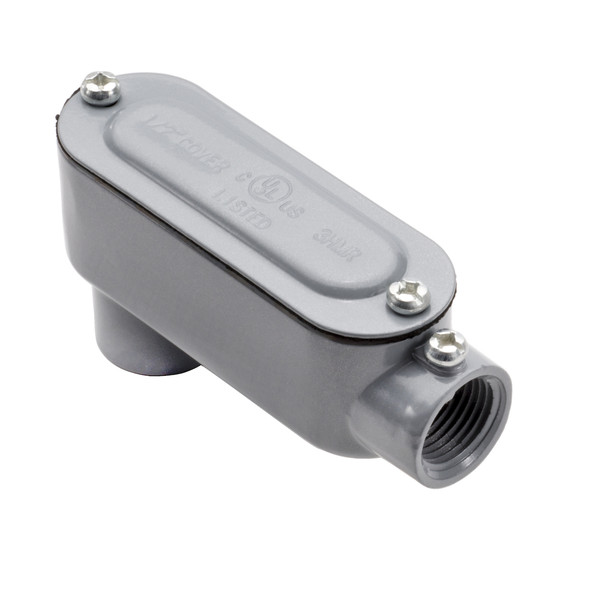

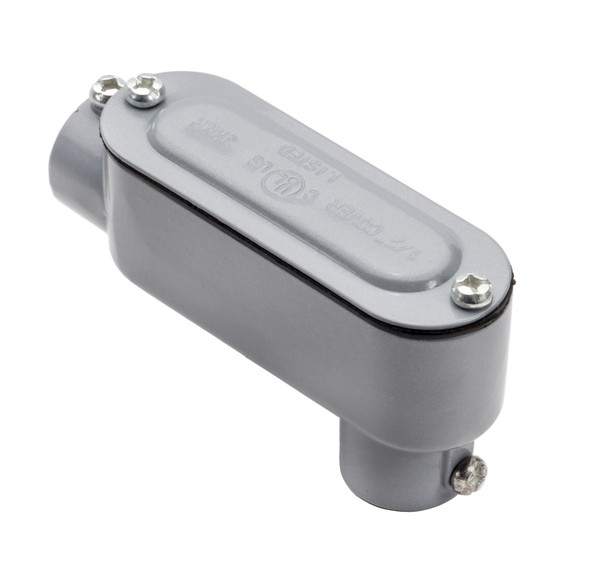

The Garvin Industries LB2SSCG is a 3/4" EMT and rigid combination conduit body, designed with a cover and gasket for superior protection. As part of Southwire's trusted LB Type series, this conduit body stands out for its durability and versatility in electrical installations.

Key Features and Benefits

• Includes a secure cover and neoprene gasket for wet location protection
• Constructed from copper-free aluminum for corrosion resistance
• NPT tapered hubs ensure a tight, reliable fit
• Powder-coated finish for added durability
• UL 514A and NEMA FB 1 certified for safety and performance
• Suitable for use in concrete and harsh environments
• Provides easy access for pulling, splicing, and maintenance of conductors

Specifications

• Trade Size: 3/4"
• Max Wire Capacity: 2 wires of 6 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 5.31" (A) x 2.37" (B) x 1.48" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical conduit installations, especially where access to conductors for pulling, splicing, or maintenance is needed in wet or concrete environments.
