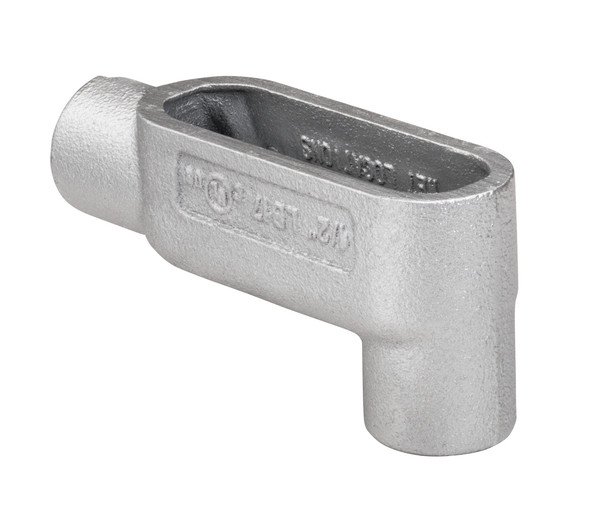

The Garvin Industries LB3G7 is a 1" LB Type Form 7 rigid conduit body, designed for durability and versatility in electrical conduit installations. This essential fitting is crafted from gray iron and finished with a zinc plating, providing excellent corrosion resistance and long-lasting performance in demanding environments.

Key Features and Benefits

• NPT tapered hubs for secure connections
• Raintight (NEMA 3R) when installed with cover and gasket
• Suitable for hazardous locations (Class 1 Div.2) per NEC 2014
• Enables 90° conduit bends and provides pull outlet for conductors
• Easy access for splices, taps, and maintenance
• Eco-friendly finish resists solvents, fuels, and acids
• Tested to ASTM B117 for superior corrosion resistance
• UL 514A/514D listed and NEMA FB 1 compliant

Specifications

• Trade Size: 1"
• Material: Gray iron
• Finish: Zinc plated, eco-friendly coating
• Internal Volume: 9 in³
• Max. Number of Conductors: 3
• Max. Conductor Size: 4 AWG
• Certifications: UL 514A/514D, NEMA FB 1, Fed. Spec A-A-50563

Common Uses

Ideal for commercial, industrial, and residential conduit systems, especially where 90° bends, splicing, or future access to conductors is required.
