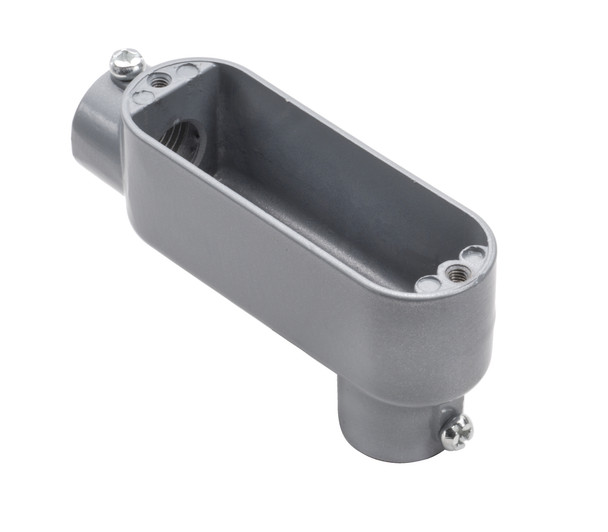

The Garvin Industries LB3SS is a 1" LB type EMT and rigid combination conduit body, designed to provide easy access to conductors for pulling, splicing, and maintenance. As part of Southwire's trusted lineup, this conduit body is built for durability and versatility in demanding environments.

Key Features and Benefits

• Combination LB type for versatile applications
• NPT tapered hubs ensure secure connections
• Suitable for use in concrete and wet locations
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• NEMA FB 1 rated and UL listed for safety and reliability
• Steel screws for strong assembly

Specifications

• Trade Size: 1"
• Max Wire Size: 6 AWG
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL Standard 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 6.25" (A) x 2.63" (B) x 1.75" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
