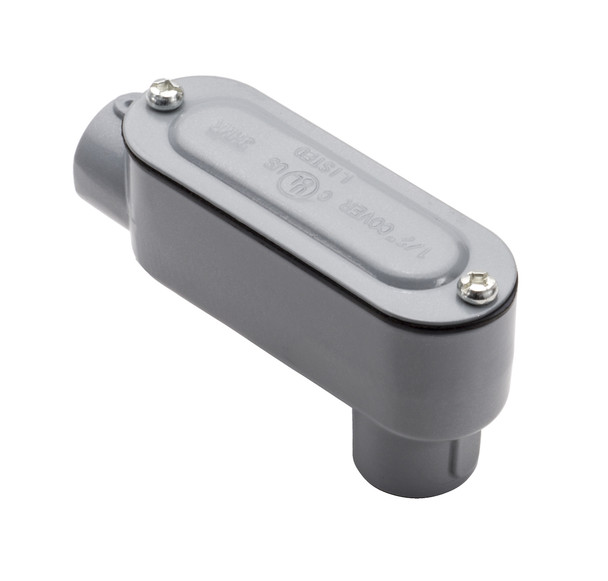

The Garvin Industries LB4CG is a 1-1/4" threaded LB conduit body, complete with a cover and gasket. Designed for durability and reliability, this copper-free aluminum die-cast body is a key solution for electrical installations where access to conductors is needed for pulling, splicing, and maintenance.

Key Features and Benefits

• Includes cover and neoprene gasket for a secure, weather-resistant seal
• Threaded NPT tapered hubs ensure a tight, reliable fit
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• UL Listed and meets NEMA FB 1 and Fed. Spec. W-C-586D standards
• Suitable for use in concrete and wet locations

Specifications

• Size: 1-1/4"
• Material: Copper-free aluminum body, stamped steel cover, neoprene rubber gasket
• Dimensions: 7.894" (A) x 3.665" (B) x 2.49" (C)
• Max wire size: 2 AWG
• UL Standard: 514A
• NEMA FB 1 compliant

Common Uses

Ideal for commercial, industrial, and residential electrical installations requiring access to conductors for pulling, splicing, and maintenance, especially in wet or concrete environments.
