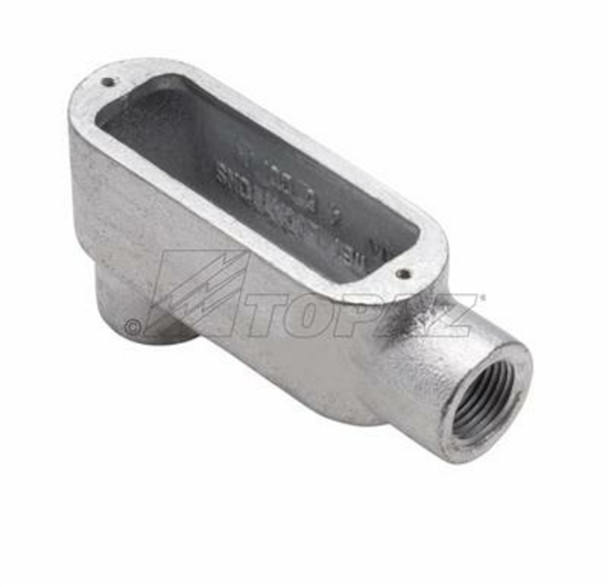

The Garvin Industries LB4M is a 1-1/4" threaded LB type conduit body crafted from durable malleable iron. Designed for reliability and versatility, this conduit body is zinc plated and aluminum enameled for enhanced corrosion resistance, making it ideal for demanding environments. It provides easy access to conductors for pulling, splicing, and maintenance, streamlining installation and future servicing.

Key Features and Benefits

• Constructed from rugged malleable iron for long-lasting durability
• Zinc plated and aluminum enameled finish resists corrosion
• NPT tapered hubs ensure secure connections
• Suitable for use in concrete applications
• UL 514A listed and meets NEMA FB 1 standards for safety and performance
• Allows convenient access for conductor pulling, splicing, and maintenance

Specifications

• Trade Size: 1-1/4"
• Material: Malleable iron
• Finish: Zinc plated, aluminum enameled
• Max Number of Conductors: 3
• Max Wire Size: 2 AWG
• Certifications: UL 514A, Fed. Spec W-C-586D, NEMA FB 1
• Dimensions: 8.22" (A) x 3.50" (B) x 2.40" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is required for pulling, splicing, or maintenance, especially in concrete or harsh environments.
