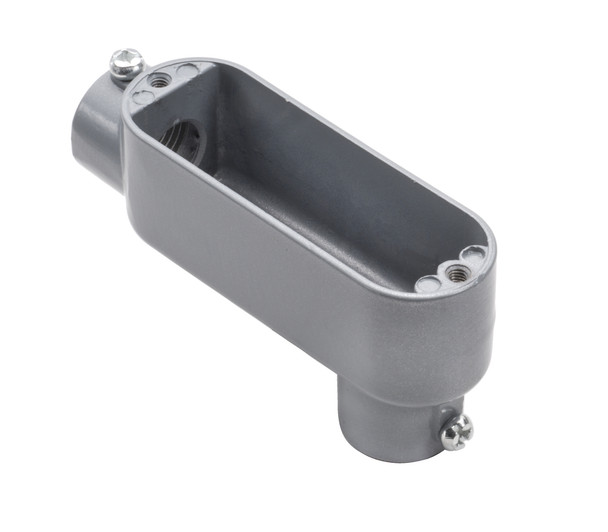

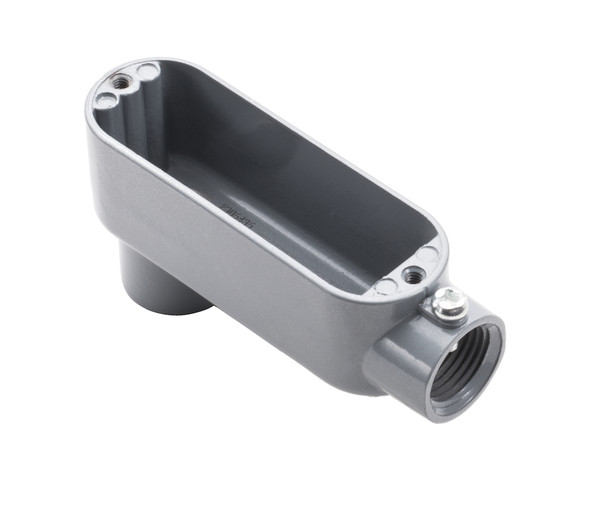

The Garvin Industries LB4SS is a 1-1/4" LB type EMT and rigid combination conduit body, designed for reliable access to conductors for pulling, splicing, and maintenance. Crafted from copper-free aluminum and finished with a durable powder coat, this conduit body is built to withstand tough environments and is rated for wet locations when used with threaded rigid metal conduit. It is a trusted choice for contractors seeking a high-quality, NEMA FB 1 rated solution for electrical installations.

Key Features and Benefits

• Combination LB type for versatile conduit runs
• NPT tapered hubs ensure secure connections
• Suitable for use in concrete and wet locations
• Constructed from corrosion-resistant copper-free aluminum
• Powder coat finish enhances durability
• UL listed and meets NEMA FB 1 standards
• Provides easy access for conductor pulling, splicing, and maintenance

Specifications

• Conduit Size: 1-1/4"
• Max Wire Size: 2 AWG
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 8.22" (A) x 3.50" (B) x 2.40" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
