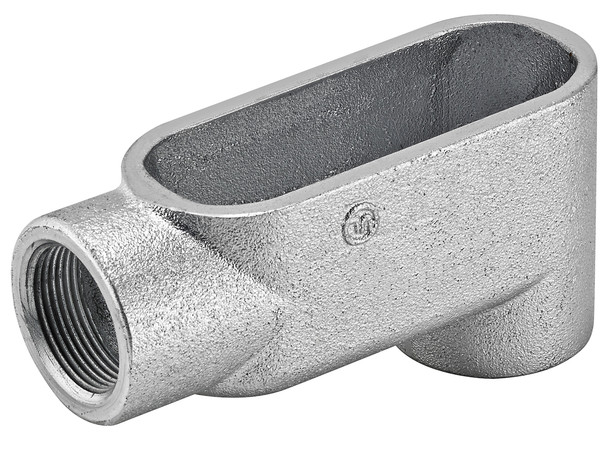

The Garvin Industries LB5G7 is a robust 1-1/2" LB Type Form 7 rigid conduit body, designed for reliable performance in demanding environments. This conduit body is crafted from gray iron and finished with a corrosion-resistant zinc plating, making it ideal for both indoor and outdoor applications where durability and safety are paramount.

Key Features and Benefits

• NPT tapered hubs ensure a secure and tight fit
• Raintight when installed with cover and gasket (NEMA 3R rated)
• Suitable for hazardous locations (Class 1 Div.2) when installed per NEC requirements
• Provides easy access for pulling, splicing, and maintaining conductors
• Allows for 90° bends and directional changes in conduit runs
• Eco-friendly finish offers superior resistance to corrosion, solvents, fuels, and acids
• Certified to UL 514A, UL 514D, and NEMA FB 1 standards

Specifications

• Trade Size: 1-1/2"
• Material: Gray iron
• Finish: Zinc plated, eco-friendly coating
• Internal Volume: 24.5 in³
• Max. Number of Conductors: 3
• Max. Conductor Size: 2 AWG
• Certifications: UL 514A, UL 514D, NEMA FB 1, Fed. Spec A-A-50563

Common Uses

Ideal for commercial, industrial, and residential conduit installations, especially where access for wire pulling, splicing, and directional changes is needed.
