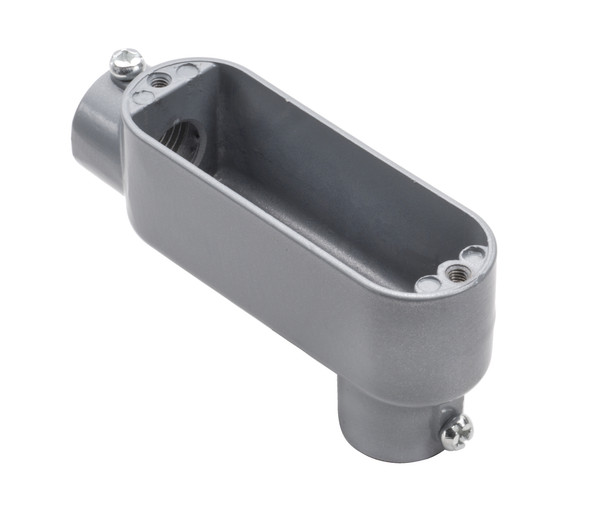

The Garvin Industries LB5SS is a 1-1/2" EMT and rigid combination conduit body designed for durability and versatility in electrical installations. As part of Southwire's trusted lineup, this LB type conduit body offers reliable access to conductors for pulling, splicing, and maintenance, making it an essential component for both commercial and industrial projects.

Key Features and Benefits

• Combination LB type for flexible installation options
• NPT tapered hubs ensure secure, leak-resistant connections
• Suitable for use in concrete and wet locations (NEMA FB 1 rated)
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish enhances durability and longevity
• UL 514A listed and meets Fed. Spec. W-C-586D for safety and performance
• Steel screws included for secure assembly

Specifications

• Trade Size: 1-1/2"
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Hub Type: NPT tapered
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 8.22" (A) x 3.75" (B) x 2.40" (C)
• Max Wire Size: 2 AWG

Common Uses

Ideal for commercial, industrial, and residential electrical conduit runs where access for wire pulling, splicing, and maintenance is required, especially in wet or concrete environments.
