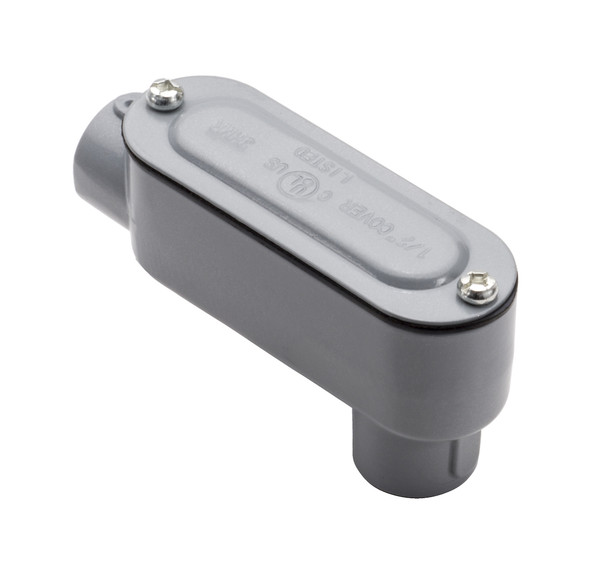

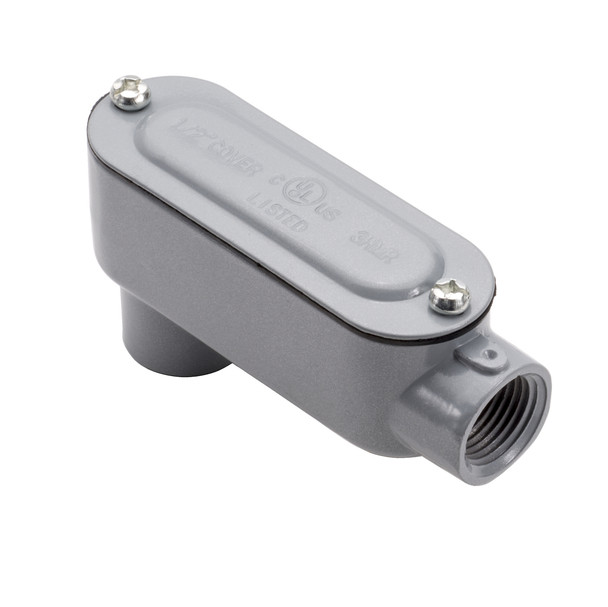

The Garvin Industries LB8CG is a 3" threaded LB type rigid conduit body, complete with a cover and gasket. As part of Southwire's trusted lineup, this conduit body is designed for durability and versatility in demanding environments.

Key Features and Benefits

• Includes cover and neoprene gasket for a secure, weather-resistant seal
• Copper-free aluminum die cast construction for corrosion resistance
• NPT tapered hubs ensure a tight, reliable fit
• Powder coat finish for enhanced durability
• UL listed and meets NEMA FB 1 standards for safety and performance
• Suitable for use in concrete and wet locations
• Provides easy access for pulling, splicing, and maintenance of conductors

Specifications

• Size: 3"
• Material: Copper-free aluminum body, stamped steel cover, neoprene rubber gasket
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 12.50" (A) x 5.675" (B) x 4.45" (C)
• Max wire size: 4/0 AWG

Common Uses

Ideal for commercial, industrial, and residential conduit installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
