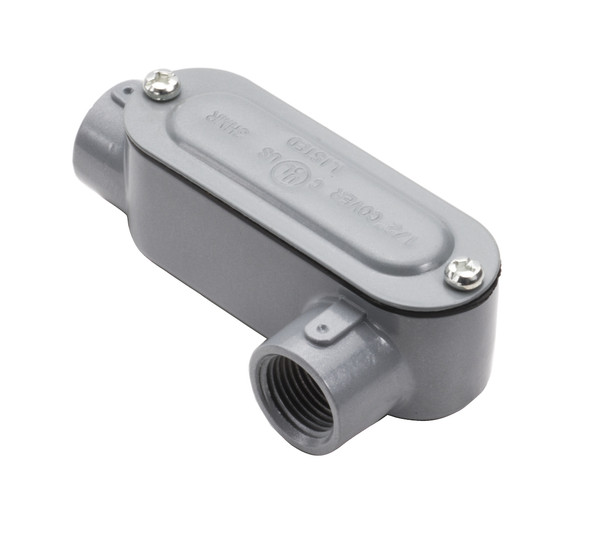

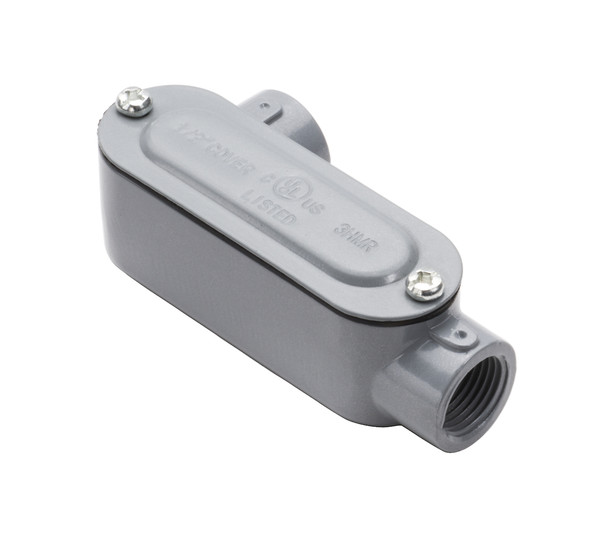

The Garvin Industries LL10CG is a 4-inch rigid conduit body from Southwire, designed for easy access to conductors for pulling, splicing, and maintenance. This robust conduit body is a key component in electrical installations, especially where durability and protection are required.

Key Features and Benefits

• Threaded LL type for secure connections
• Includes cover and neoprene gasket for a tight, weather-resistant seal
• Made from copper-free aluminum die cast for corrosion resistance
• Powder coated finish for added durability
• Suitable for use in concrete and wet locations
• NPT tapered hubs for reliable fit
• UL listed and meets NEMA FB 1 standards

Specifications

• Trade Size: 4"
• Max Wire Size: 350MCM
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 15.50" (A) x 5.452" (B) x 6.171" (C)

Common Uses

Ideal for commercial and industrial electrical installations, especially where access to conductors is needed for maintenance, and in environments exposed to moisture or concrete.
