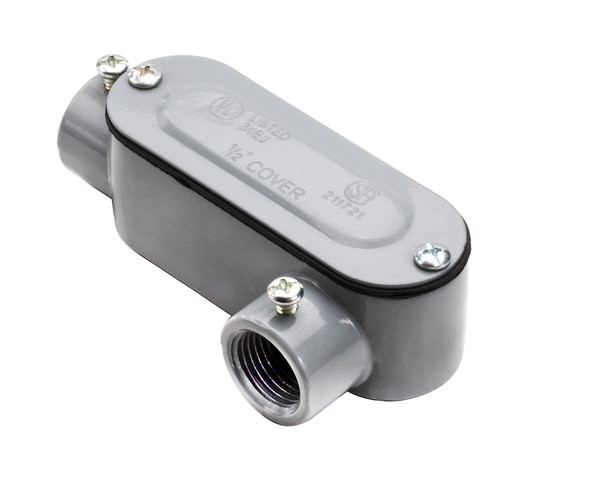

The Garvin Industries LL1SSCG is a 1/2" EMT and rigid combination conduit body designed for reliable access to conductors in challenging environments. This LL type body includes a cover and gasket, making it suitable for wet locations and concrete installations. Built from copper-free aluminum with a powder coat finish, it ensures durability and corrosion resistance for long-term performance.

Key Features and Benefits

• LL type body with cover and gasket for secure, weather-resistant installations
• Constructed from copper-free aluminum for enhanced durability
• NPT tapered hubs for a tight, reliable fit
• Rated for wet locations when used with threaded rigid metal conduit
• Powder coat finish for added corrosion protection
• UL 514A and NEMA FB 1 certified for safety and compliance
• Includes stamped steel cover and neoprene rubber gasket

Specifications

• Size: 1/2"
• Max. wire size: 6 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 4.56" (A) x 1.31" (B) x 2.06" (C)

Common Uses

Ideal for providing access to conductors for pulling, splicing, and maintenance in commercial, industrial, and residential electrical installations, especially in wet or concrete environments.
