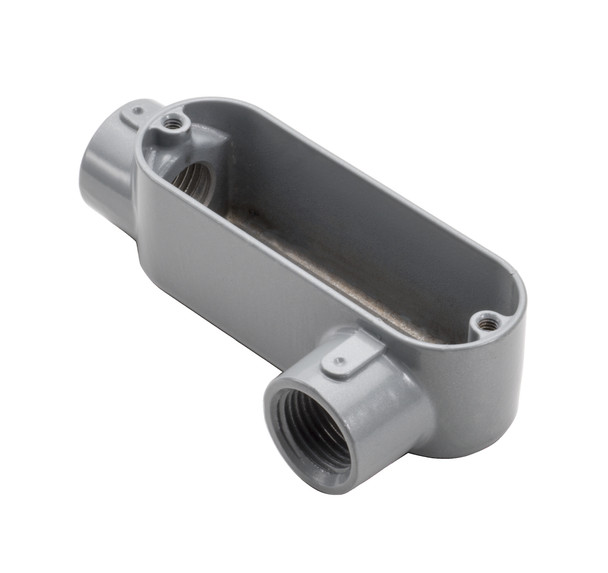

The Garvin Industries LL7 is a 2-1/2" threaded LL type rigid conduit body designed to provide easy access to conductors for pulling, splicing, and maintenance. Crafted from copper-free aluminum with a durable powder coat finish, this conduit body is built for longevity and reliability in demanding environments.

Key Features and Benefits

• Threaded LL type for secure, reliable connections
• NPT tapered hubs ensure a tight seal
• Suitable for use in concrete and wet locations
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• UL listed and meets NEMA FB 1 and Fed. Spec. W-C-586D standards

Specifications

• Size: 2-1/2"
• Max Wire Size: 4/0 AWG
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, NEMA FB 1, Fed. Spec. W-C-586D
• Dimensions: 13" (A) x 4.063" (B) x 5.709" (C)

Common Uses

Ideal for commercial and industrial electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in concrete or wet environments.
