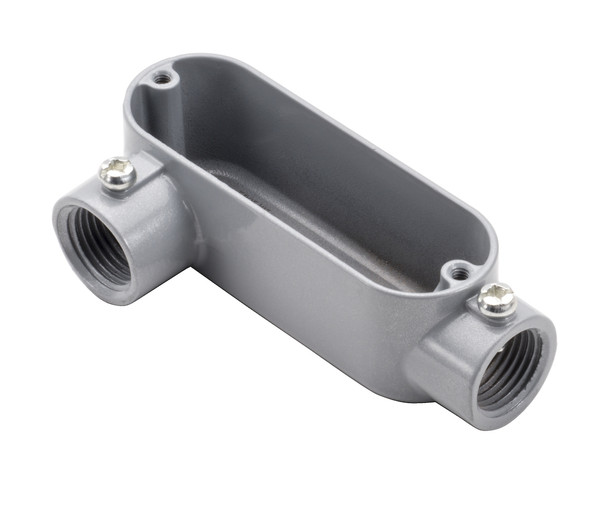

The Garvin Industries LR1SS is a 1/2" LR type EMT and rigid combination conduit body, designed for easy access to conductors for pulling, splicing, and maintenance. Built from copper-free aluminum and finished with a durable powder coat, this conduit body is rated for wet locations and is suitable for use in concrete. It features NPT tapered hubs and steel screws, ensuring a secure and reliable installation in demanding environments.

Key Features and Benefits

• Combination LR type for versatile conduit runs
• NPT tapered hubs for secure connections
• Suitable for wet locations and concrete installations
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• UL and NEMA certified for safety and reliability

Specifications

• Size: 1/2"
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 4.56" (A) x 1.31" (B) x 2.06" (C)
• Max Wire Size: 6 AWG

Common Uses

Ideal for commercial, industrial, and residential conduit installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
