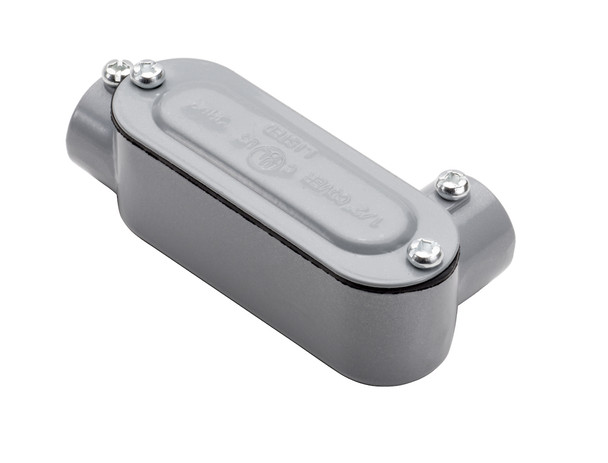

The Garvin Industries LR1SSCG is a 1/2" EMT and rigid combination conduit body, LR type, complete with a durable stamped steel cover and neoprene gasket. This essential fitting is crafted from copper-free aluminum and is designed to provide reliable access to conductors for pulling, splicing, and maintenance, especially in demanding environments.

Key Features and Benefits

• Combination LR type body for versatile conduit runs
• Includes cover and gasket for a secure, weather-resistant seal
• NPT tapered hubs ensure tight, reliable connections
• Rated for wet locations when used with threaded rigid conduit
• Powder-coated finish for enhanced durability
• UL 514A and NEMA FB 1 certified for safety and performance
• Suitable for use in concrete installations

Specifications

• Size: 1/2"
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Max Wire Size: 6 AWG
• Dimensions: 4.56" (A) x 1.31" (B) x 2.06" (C)
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1

Common Uses

Ideal for commercial, industrial, and residential conduit installations, especially where access to conductors is needed for pulling, splicing, or maintenance, and in wet or concrete environments.
