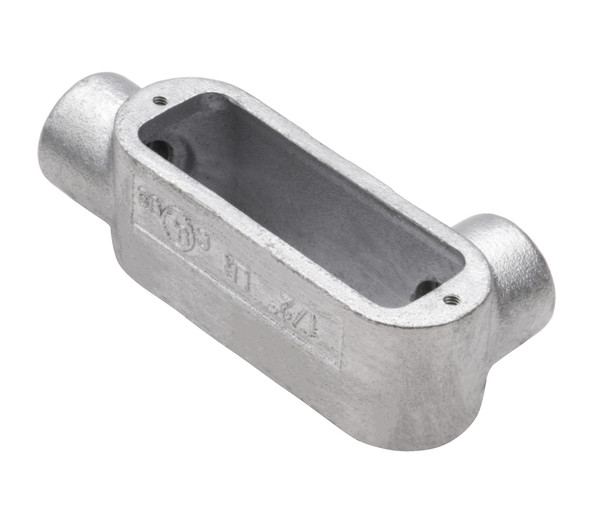

The Garvin Industries LR2M is a 3/4" threaded LR type conduit body crafted from durable malleable iron, making it a reliable choice for electrical installations. Designed for easy access to conductors, this conduit body is essential for maintenance and future system changes.

Key Features and Benefits

• Constructed from robust malleable iron for long-lasting performance
• NPT tapered hubs ensure a secure and tight fit
• Suitable for use in concrete installations
• Zinc plated and aluminum enameled for enhanced corrosion resistance
• Provides convenient access to conductors for maintenance
• UL 514A listed and compliant with Fed. Spec W-C-586D and NEMA FB 1

Specifications

• Size: 3/4"
• Maximum number of conductors: 3
• Maximum wire size: 6 AWG
• Internal volume: 7.5 in³
• Material: Malleable iron
• Finish: Zinc plated, aluminum enameled
• Certifications: UL 514A, Fed. Spec W-C-586D, NEMA FB 1
• Dimensions: 5.31" (A) x 1.62" (B) x 2.23" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical conduit installations where access to wiring is required for maintenance or future upgrades.
