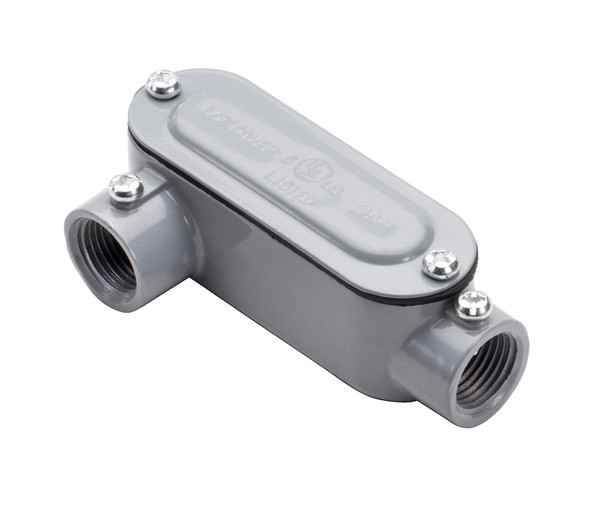

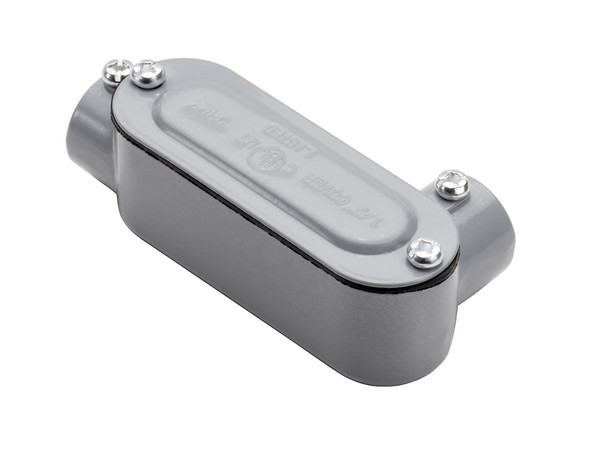

The Garvin Industries LR2SSCG is a 3/4" EMT and rigid combination conduit body, LR type, complete with a cover and gasket. This robust conduit body is designed for easy access to conductors, making pulling, splicing, and maintenance tasks more efficient in electrical installations.

Key Features and Benefits

• Versatile LR type body with included cover and gasket for a secure, weather-resistant seal
• NPT tapered hubs ensure tight, reliable connections
• Rated for wet locations when used with threaded rigid metal conduit
• Constructed from copper-free aluminum for durability and corrosion resistance
• Powder-coated finish for added protection
• UL 514A, Fed. Spec. W-C-586D, and NEMA FB 1 certified for quality assurance

Specifications

• Trade Size: 3/4"
• Max Wire Size: 6 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene rubber gasket
• Finish: Powder coat
• Dimensions: 5.31" (A) x 1.62" (B) x 2.23" (C)

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors for pulling, splicing, and maintenance is required, especially in wet or outdoor environments.
