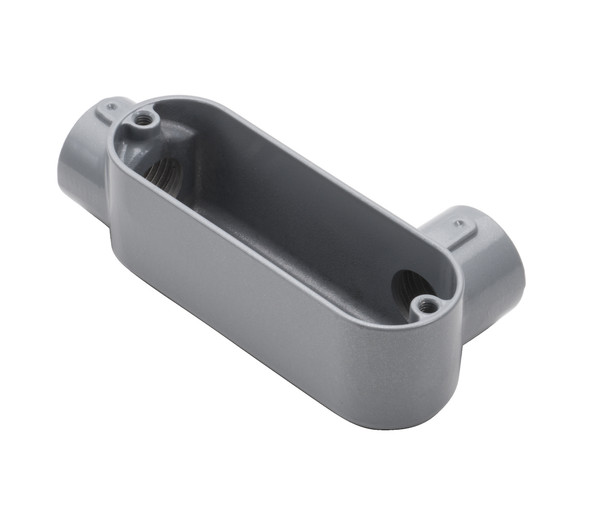

The Garvin Industries LR3 is a 1" threaded LR type rigid conduit body, engineered for durability and reliability in demanding electrical installations. As part of Southwire's trusted lineup, this conduit body is designed to provide easy access to conductors for pulling, splicing, and maintenance, ensuring efficient workflow on the job site.

Key Features and Benefits

• Threaded LR type for secure and reliable connections
• NPT tapered hubs for a tight, leak-resistant fit
• Constructed from copper-free aluminum for corrosion resistance
• Durable powder coat finish for added protection
• Suitable for use in concrete and wet locations
• UL listed and meets federal and NEMA standards

Specifications

• Size: 1"
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 5.915" (A) x 1.90" (B) x 2.65" (C)
• Max wire size: 6 AWG

Common Uses

Ideal for commercial, industrial, and residential electrical conduit installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
