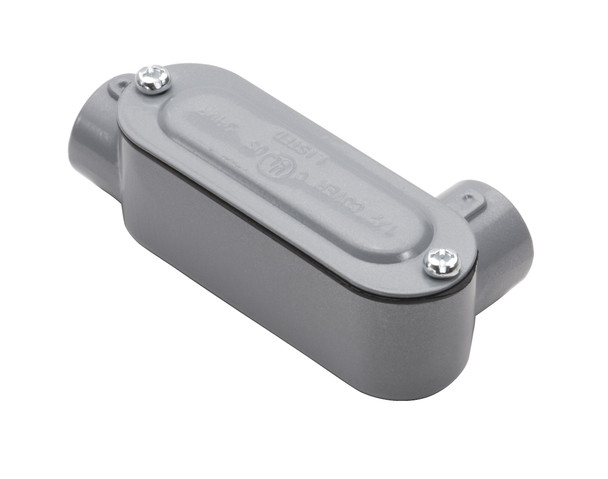

The Garvin Industries LR3CG is a 1" threaded LR type conduit body, complete with a cover and gasket, designed for reliable access to conductors in demanding environments. This robust fitting is a staple in Southwire's lineup, offering durability and versatility for electrical installations.

Key Features and Benefits

• Includes cover and gasket for a secure, weather-resistant seal
• Threaded NPT tapered hubs ensure easy, leak-free connections
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• Suitable for use in concrete and wet locations
• UL listed and meets NEMA FB 1 standards

Specifications

• Size: 1"
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 5.915" (A) x 1.90" (B) x 2.65" (C)

Common Uses

Ideal for providing access to conductors for pulling, splicing, and maintenance in commercial, industrial, and residential electrical systems, especially where moisture or concrete exposure is a concern.
