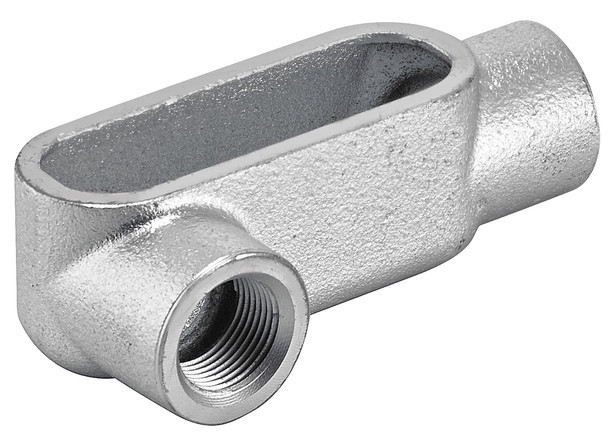

The Garvin Industries LR3G7 is a robust 1" LR Type Form 7 rigid conduit body, designed to provide a reliable pull outlet for conductors during installation. Crafted from durable gray iron and finished with a corrosion-resistant zinc plating, this conduit body ensures long-lasting performance in demanding environments. Its raintight construction and suitability for hazardous locations make it a versatile choice for a wide range of electrical installations.

Key Features and Benefits

• Three NPT tapered hubs for secure conduit connections
• Raintight when installed with cover and gasket for outdoor use
• Certified for use in Class 1 Div.2 hazardous locations
• Eco-friendly, superior corrosion-resistant finish
• Highly resistant to solvents, fuels, and acids
• Tested to ASTM B117 for over 200 hours of salt spray resistance
• UL listed and compliant with NEMA FB 1 standards

Specifications

• Trade Size: 1"
• Max Number of Conductors: 3
• Max Wire Size: 4 AWG
• Internal Volume: 9 in³
• Material: Gray iron
• Finish: Zinc plated
• Certifications: UL 514A, UL 514D, NEMA FB 1
• Dimensions: 6.20" (A) x 2.80" (B) x 1.90" (C)

Common Uses

Ideal for commercial, industrial, and residential conduit installations where a pull outlet or directional change is needed, especially in outdoor or hazardous locations.
