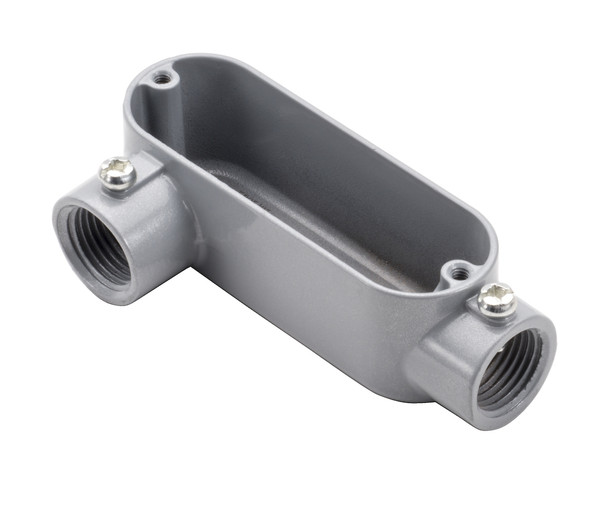

The Garvin Industries LR3SS is a 1" LR type EMT and rigid combination conduit body designed to provide easy access to conductors for pulling, splicing, and maintenance. Crafted from copper-free aluminum with a durable powder coat finish, this conduit body is built for demanding environments and is suitable for use in concrete and wet locations.

Key Features and Benefits

• Combination LR type for versatile installations
• NPT tapered hubs ensure secure connections
• Rated for wet locations when used with threaded rigid metal conduit
• Durable copper-free aluminum die-cast construction
• Powder coat finish for added corrosion resistance
• UL listed and NEMA FB 1 compliant for safety and reliability

Specifications

• Conduit size: 1"
• Max wire size: 6 AWG
• Material: Copper-free aluminum
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 6.25" (A) x 1.88" (B) x 2.50" (C)

Common Uses

Ideal for commercial, industrial, and residential conduit installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
