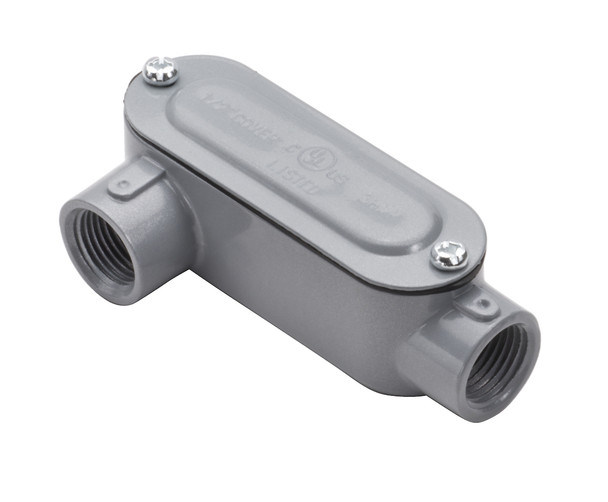

The Garvin Industries LR4CG is a 1-1/4" threaded LR conduit body, complete with a cover and gasket, designed for reliable access to conductors in commercial and industrial wiring systems. Built from copper-free aluminum and finished with a durable powder coat, this conduit body ensures long-lasting performance, even in demanding environments.

Key Features and Benefits

• Threaded LR type for easy installation and maintenance access
• Includes cover and neoprene rubber gasket for a secure, weather-resistant seal
• NPT tapered hubs for a tight, reliable fit
• Suitable for use in concrete and wet locations
• Constructed from corrosion-resistant copper-free aluminum
• Powder-coated finish for enhanced durability
• UL listed and meets NEMA FB 1 and Fed. Spec. W-C-586D standards

Specifications

• Size: 1-1/4"
• Max Wire Size: 2 AWG
• Material: Copper-free aluminum body, stamped steel cover, neoprene gasket
• Finish: Powder coat
• Dimensions: 7.894" (A) x 2.77" (B) x 3.385" (C)
• Certification: UL 514A, NEMA FB 1, Fed. Spec. W-C-586D

Common Uses

Ideal for providing access to conductors for pulling, splicing, and maintenance in commercial, industrial, and outdoor electrical installations.
