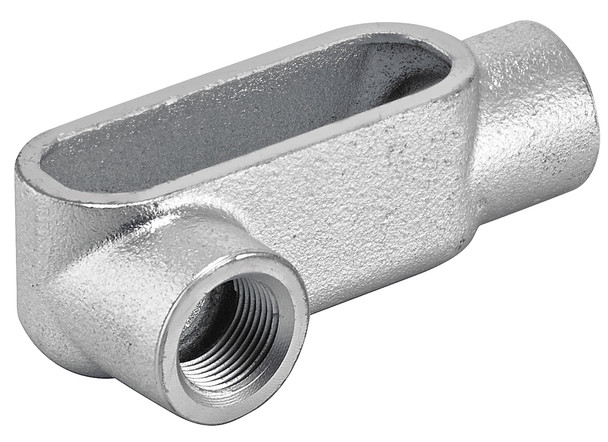

The Garvin Industries LR4G7 is a 1-1/4" LR Type Form 7 rigid conduit body, expertly crafted from gray iron and finished with a zinc plating for enhanced durability. This essential fitting is designed for reliability and longevity in demanding environments, making it a staple in the Southwire lineup.

Key Features and Benefits

• NPT tapered hubs for secure conduit connections
• Raintight when installed with cover and gasket (NEMA 3R)
• Suitable for Class 1 Div.2 hazardous locations per NEC 2014
• Eco-friendly, corrosion-resistant finish passes 200+ hour salt spray test
• Highly resistant to solvents, fuels, and acids
• UL 514A and UL 514D listed for safety and compliance

Specifications

• Size: 1-1/4"
• Material: Gray iron
• Finish: Zinc plated, eco-friendly coating
• Max. Number of Conductors: 3
• Max. Conductor Size: 2 AWG
• Internal Volume: 17.8 in³
• Certifications: UL, NEMA FB 1, Fed. Spec A-A-50563

Common Uses

Ideal for use as a pull outlet for conductors in commercial, industrial, and hazardous locations. Perfect for applications requiring robust, corrosion-resistant conduit fittings.
