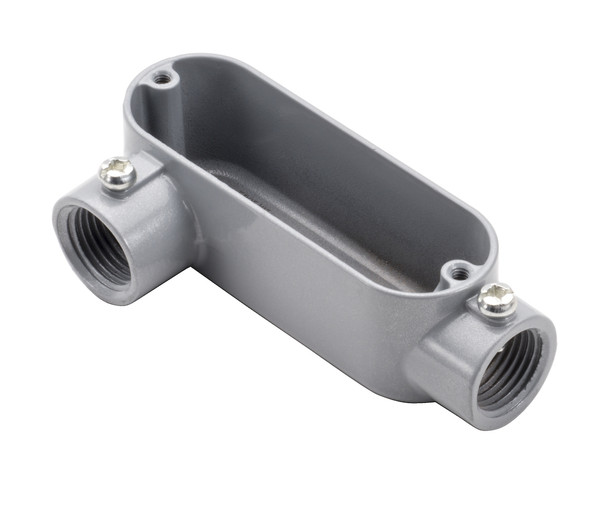

The Garvin Industries LR4SS is a 1-1/4" LR type combination conduit body designed for easy access to conductors for pulling, splicing, and maintenance. As part of Southwire's trusted lineup, this conduit body is built for durability and reliability in demanding environments.

Key Features and Benefits

• Combination LR type for versatile installations
• NPT tapered hubs ensure secure connections
• Constructed from copper-free aluminum for corrosion resistance
• Powder coat finish for added durability
• Suitable for use in concrete and wet locations
• UL listed and NEMA FB 1 rated for safety and compliance
• Steel screws included for secure assembly

Specifications

• Trade Size: 1-1/4"
• Max Wire Size: 2 AWG
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 8.22" (A) x 2.50" (B) x 3.40" (C)

Common Uses

Ideal for commercial, industrial, and residential conduit installations where access to conductors is required for pulling, splicing, or maintenance, especially in wet or concrete environments.
