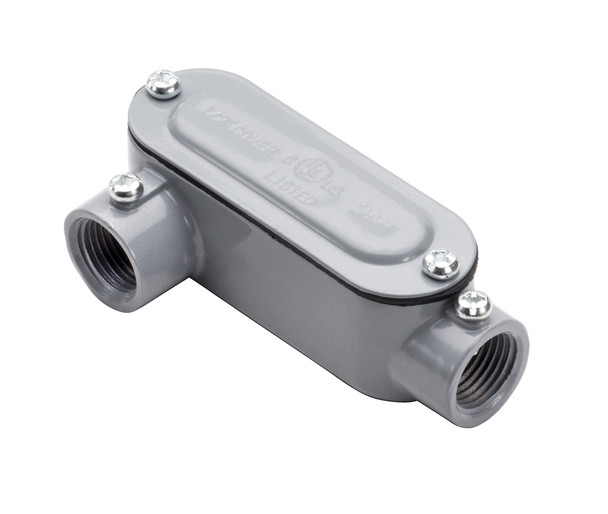

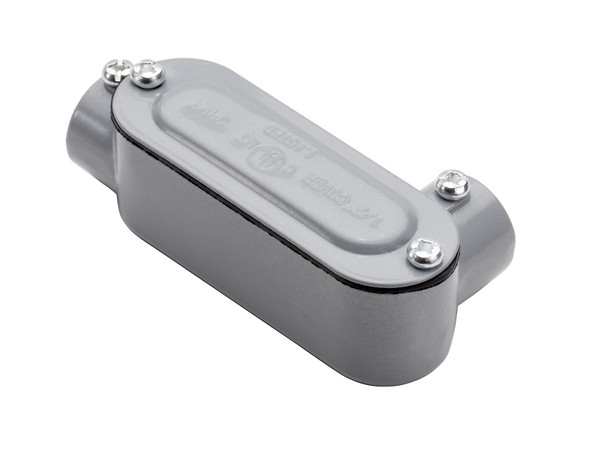

The Garvin Industries LR4SSCG is a 1-1/4" EMT and rigid combination conduit body, designed to provide easy access to conductors for pulling, splicing, and maintenance. This robust conduit body comes complete with a cover and gasket, making it a reliable choice for wet locations and concrete installations.

Key Features and Benefits

• Combination LR type with included cover and gasket for added protection
• Copper-free aluminum die-cast body for corrosion resistance
• Powder coat finish for enhanced durability
• NPT tapered hubs ensure secure connections
• NEMA FB 1 rated for wet locations when used with threaded rigid metal conduit
• UL 514A and Fed. Spec. W-C-586D certified for safety and performance
• Suitable for use in concrete environments

Specifications

• Trade Size: 1-1/4"
• Maximum Wire Size: 3 x 2 AWG
• Material: Copper-free aluminum (body), stamped steel (cover), neoprene rubber (gasket)
• Finish: Powder coat
• Dimensions: 8.22" (A) x 2.50" (B) x 3.40" (C)

Common Uses

Ideal for commercial and industrial electrical installations, especially where access to conductors is needed for pulling, splicing, or maintenance in wet or concrete environments.
