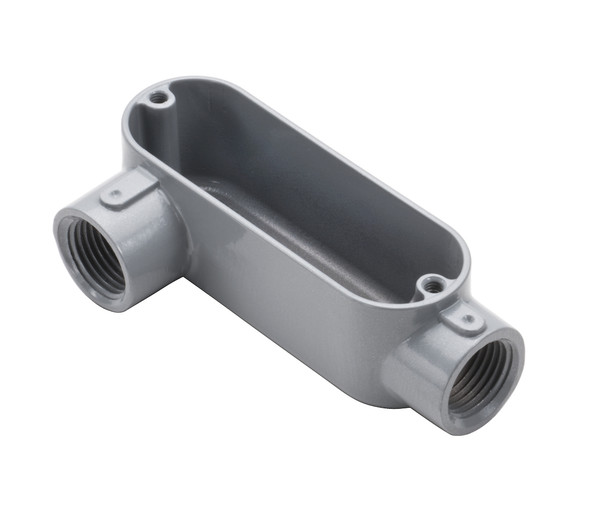

The Garvin Industries LR5 is a 1-1/2" threaded LR type rigid conduit body, designed to provide reliable access to conductors for pulling, splicing, and maintenance. Crafted from copper-free aluminum and finished with a durable powder coat, this conduit body is built to withstand tough environments, including wet locations and concrete installations. It is a trusted solution for electrical contractors seeking quality and compliance in their conduit systems.

Key Features and Benefits

• Threaded LR type for secure conduit connections
• NPT tapered hubs ensure tight, leak-resistant seals
• Suitable for use in concrete and wet locations
• Constructed from copper-free aluminum for corrosion resistance
• Durable powder coat finish for added protection
• UL listed and meets Fed. Spec. W-C-586D and NEMA FB 1 standards

Specifications

• Size: 1-1/2"
• Max wire size: 3 x 2 AWG
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 7.894" (A) x 2.77" (B) x 3.385" (C)

Common Uses

Ideal for commercial and industrial electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
