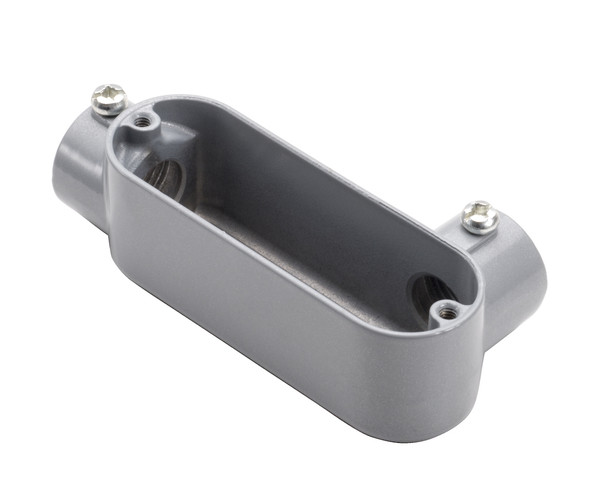

The Garvin Industries LR5SS is a 1-1/2" combination LR type conduit body designed for EMT and rigid conduit installations. Crafted from copper-free aluminum with a durable powder coat finish, this conduit body is engineered for longevity and reliability in demanding environments. Its NPT tapered hubs and NEMA FB 1 wet location rating make it suitable for both indoor and outdoor use, especially where access to conductors is required for pulling, splicing, and maintenance.

Key Features and Benefits

• Combination LR type for versatile conduit runs
• NPT tapered hubs ensure secure, leak-resistant connections
• Constructed from corrosion-resistant copper-free aluminum
• Powder coat finish for added durability
• NEMA FB 1 rated for wet locations with threaded rigid metal conduit
• UL 514A and Fed. Spec. W-C-586D certified
• Easy access for conductor pulling, splicing, and maintenance

Specifications

• Trade Size: 1-1/2"
• Material: Copper-free aluminum die cast
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 8.22" (A) x 2.67" (B) x 3.48" (C)
• Max Wire Size: 3 x 2 AWG

Common Uses

Ideal for commercial, industrial, and residential conduit installations where conductor access is needed for pulling, splicing, or maintenance, especially in wet or outdoor locations.
