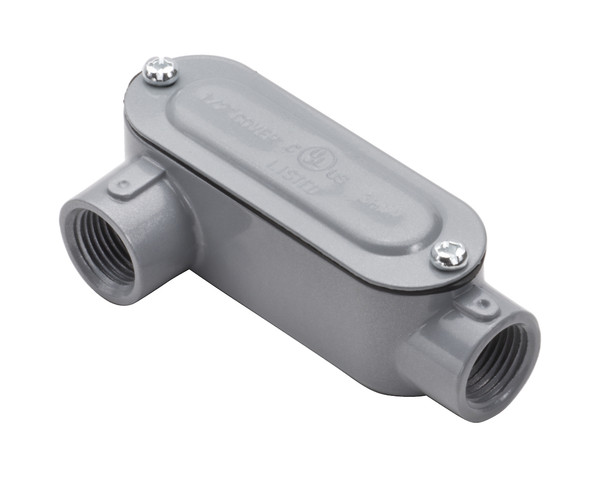

The Garvin Industries LR6CG is a robust 2" threaded LR conduit body, complete with a cover and gasket. Designed for reliability, this conduit body is crafted from copper-free aluminum and finished with a durable powder coat, making it ideal for demanding environments.

Key Features and Benefits

• Threaded LR type body with included cover and neoprene gasket for a secure seal
• NPT tapered hubs ensure tight, reliable connections
• Suitable for use in concrete and wet locations, providing versatile installation options
• Powder-coated finish enhances durability and corrosion resistance
• UL listed and meets NEMA FB 1 and Fed. Spec. W-C-586D standards for safety and quality
• Easy access for pulling, splicing, and maintenance of conductors

Specifications

• Trade Size: 2"
• Material: Copper-free aluminum die cast body, stamped steel cover, neoprene rubber gasket
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
• Dimensions: 10.134" (A) x 3.335" (B) x 3.81" (C)
• Max Wire Size: 2/0 AWG

Common Uses

Ideal for commercial, industrial, and residential electrical installations where access to conductors is needed for pulling, splicing, or maintenance, especially in wet or concrete environments.
