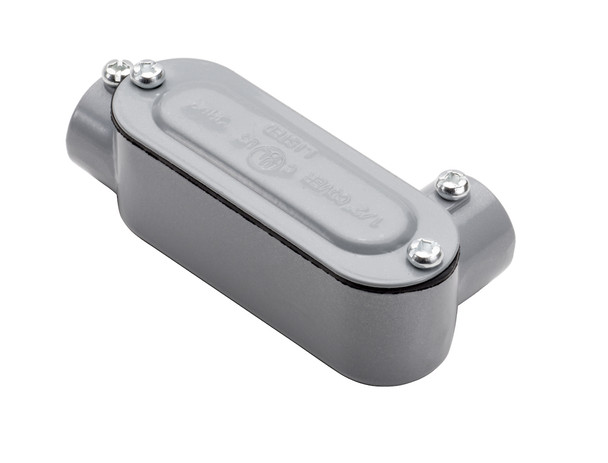

The Garvin Industries LR6SSCG is a 2" EMT and rigid combination conduit body, LR type, designed for reliable access to conductors for pulling, splicing, and maintenance. This robust conduit body includes a cover and gasket, making it ideal for wet locations and concrete installations.

Key Features and Benefits

• Combination LR type with included cover and gasket for secure installation
• NPT tapered hubs ensure a tight, reliable fit
• Suitable for use in concrete and wet locations
• Constructed from copper-free aluminum for corrosion resistance
• Powder-coated finish for added durability
• NEMA FB 1 rated for wet locations with threaded rigid metal conduit
• UL 514A and Fed. Spec. W-C-586D certified for safety and quality

Specifications

• Size: 2"
• Material: Copper-free aluminum body, stamped steel cover, neoprene rubber gasket
• Max Wire Size: 2/0 AWG
• Dimensions: 10.48" (A) x 3.29" (B) x 4.07" (C)
• Finish: Powder coat
• Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1

Common Uses

Ideal for commercial, industrial, and residential conduit installations where access to conductors is required for pulling, splicing, or maintenance, especially in wet or concrete environments.
