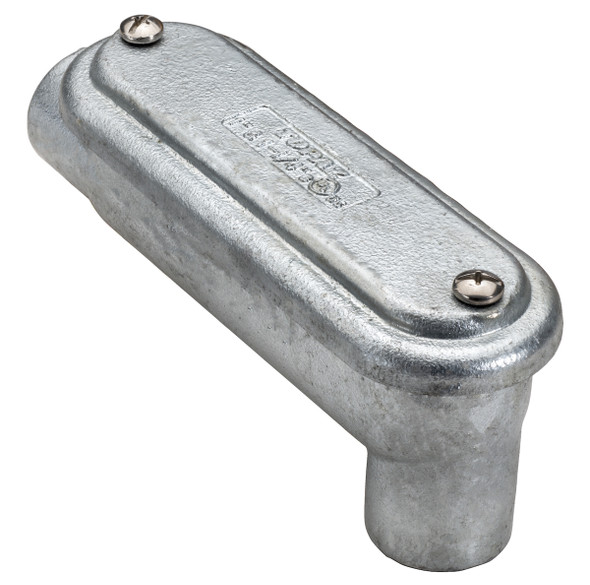

The Garvin Industries MLB7CGHDG is a robust 2-1/2" LB type mogul conduit body, designed for demanding electrical installations. Featuring a hot dip galvanized malleable iron construction, this conduit body is equipped with a raised cover, neoprene gasket, and built-in cable pulling rollers for easy wire management. It’s engineered for wet locations and provides ample internal volume for large conductors, making it an essential solution for complex wiring needs.

Key Features and Benefits

• Hot dip galvanized malleable iron body for superior durability
• Built-in cable pulling roller for smooth wire installation
• Threaded NPT tapered hubs compatible with Rigid and IMC conduit
• Integral hub bushings protect conductor insulation
• Raised cover and neoprene gasket ensure a weather-resistant seal
• Stainless steel cover screws for corrosion resistance
• UL listed for wet locations and NEMA 3R rated

Specifications

• Size: 2-1/2"
• Max. number of conductors: 3
• Max. conductor size: 300 MCM
• Internal volume: 163 in³
• Material: Malleable iron, hot dip galvanized
• Gasket: Neoprene rubber
• Certifications: UL 514A, UL 514D, Fed. Spec W-C-586D, A-A-50563, NEMA FB 1-2014, NEMA 3R

Common Uses

Ideal for pulling, splicing, and tapping large conductors in commercial and industrial electrical systems, especially where straight or 90° turns are required in wet or harsh environments.
