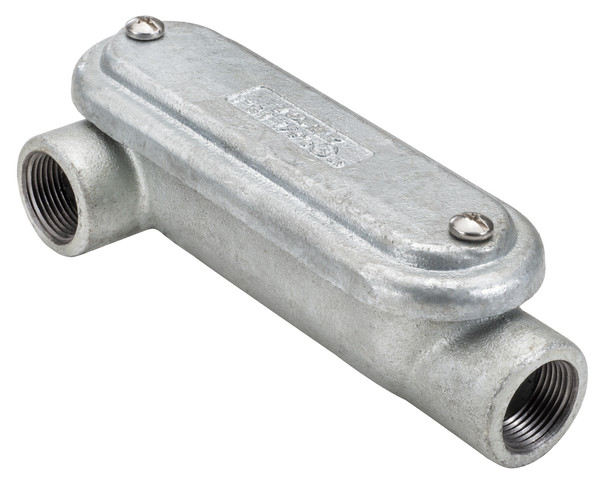

The Garvin Industries MLR3CGHDG is a 1" LR type mogul conduit body crafted from hot dip galvanized malleable iron, complete with a cover and gasket. This robust conduit body is designed for reliability and ease of installation, making it a trusted choice for demanding electrical applications.

Key Features and Benefits

• Suitable for wet locations and c(UL)us listed for safety
• Threaded NPT tapered hubs for secure fit with Rigid and IMC conduit
• Smooth, round integral hub bushings protect conductor insulation
• Provides easy access for wiring maintenance and future changes
• Includes raised cover, neoprene gasket, and stainless steel screws for a tight seal
• Hot dip galvanized finish for superior corrosion resistance

Specifications

• Size: 1"
• Material: Malleable iron body, neoprene rubber gasket, stainless steel screws
• Finish: Hot dip galvanized
• Internal Volume: 19 in³
• Max Number of Conductors: 3
• Max Conductor Size: 4 AWG
• Certifications: UL 514A, UL 514D, Fed. Spec W-C-586D, A-A-50563, NEMA FB 1-2014, NEMA 3R
• Dimensions: 8.62" L x 5.98" W x 1.71" H

Common Uses

Ideal for pulling straight or 90° angle turns, making taps and splices, and providing access for maintenance in commercial, industrial, and utility electrical installations.
